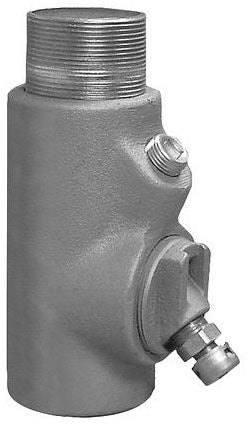

Appleton EYDM-75AL 3/4 Aluminum Drain Seal

Product Description

Appleton EYDM-75AL is a three-fourths inch aluminum drain seal designed for efficient drainage in conduit systems. This model is made from epoxy powder coated Almag 35 aluminum, which provides durability and resistance to corrosion. The EYDM-75AL features a vertical mounting position and a turning radius of one point ninety-four inches, making it suitable for various installations.

• Epoxy powder coated Almag 35 aluminum construction
• UL approved for Class I Group C D, Class II Group E F G, Class III
• Includes removable male nipple for flexible connections

Product Highlights

This drain seal is designed for use with threaded rigid metal conduit. It prevents the passage of gases, vapors, or flames, ensuring safety and compliance in various applications.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• UPC: 78138161983

Technical Specifications

• Trade Size: 3/4 inch
• Mounting Position: Vertical
• Enclosure: Class I Group C D, Class II Group E F G, Class III
• Approval: UL
• Connection Type: Male, Female
• Turning Radius: 1.94 inches
• Material: Epoxy powder coated Almag 35 aluminum
• Catalog Number: EYDM-75AL
