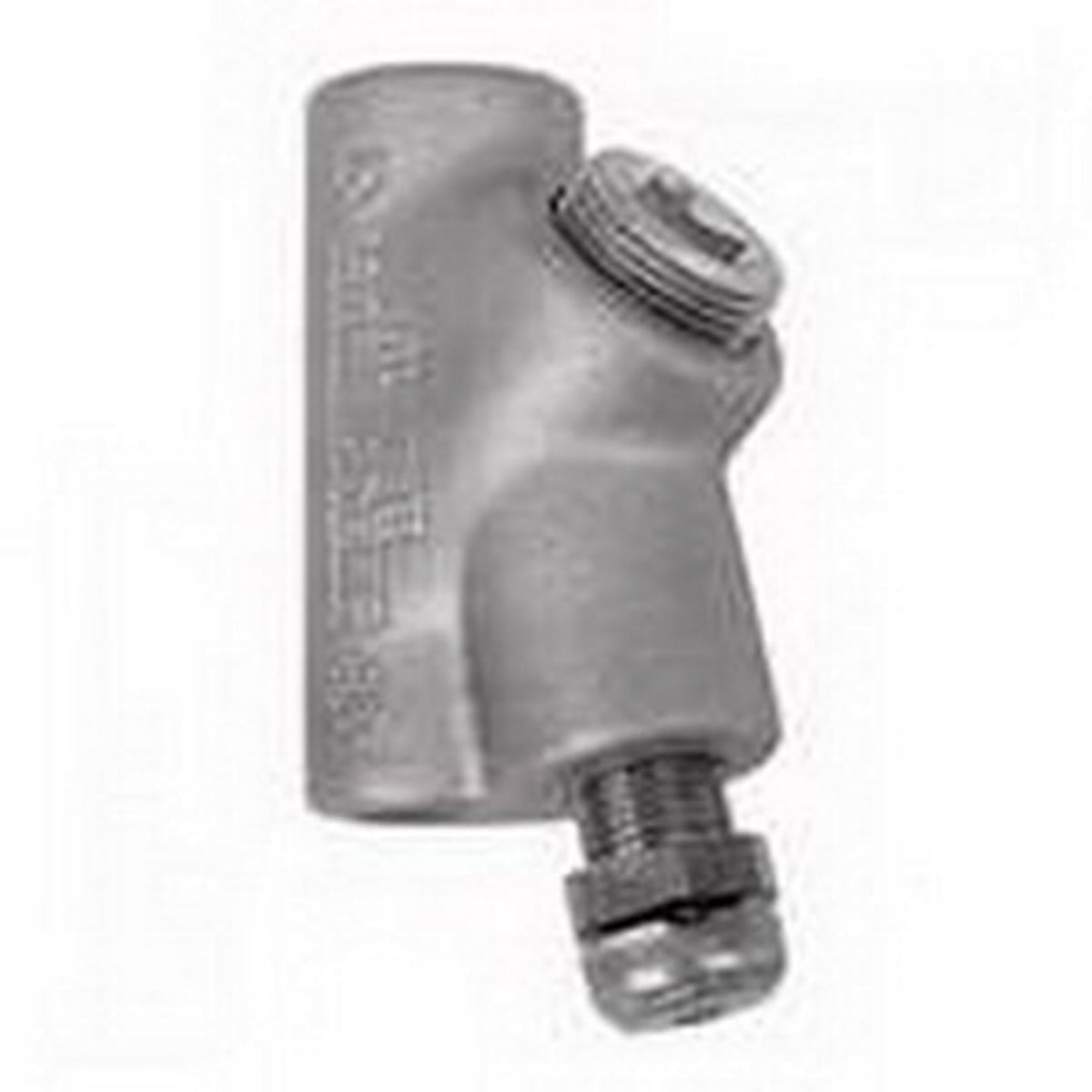

Appleton EYD1 Vertical Drain Seal Fitting (1/2 Inch)

Product Description

Appleton EYD1 is a 25% fill vertical conduit drain sealing fitting designed to prevent passage of gases, vapors, or flames between portions of a conduit system. The EYD1 is made of grayloy iron with a triple-coat finish and uses tapered FNPT connections for installation on threaded rigid metal conduit and intermediate metal conduit (IMC). It is UL 886 and CSA certified for classified locations.

• 25% fill vertical drain seal constructed of grayloy iron with triple-coat (zinc electroplate, chromate and epoxy) finish
• Tapered FNPT connections for use with threaded rigid metal conduit and IMC; smooth integral bushing protects conductor insulation
• UL 886 and CSA C22.2 No. 30 certified; listed for Class I Division 1 and 2 (Groups C, D), Class II Division 1 and 2 (Groups E, F, G), and Class III

Product Highlights

25% fill vertical conduit drain seal; grayloy iron with triple-coat finish; tapered FNPT connection; UL and CSA certified for hazardous locations

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EYD1
• Country of Origin: Mexico
