Appleton EYA-50 sealing fitting 1/2 in

Product Description

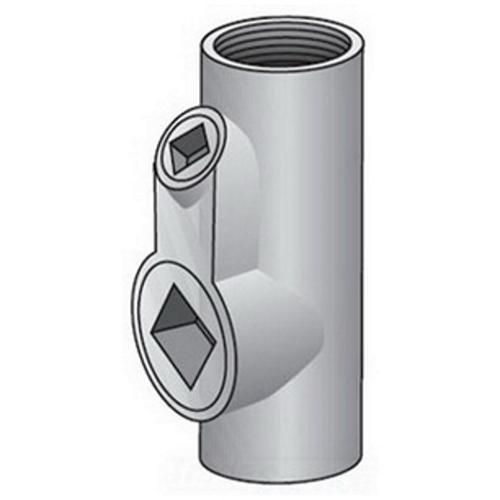

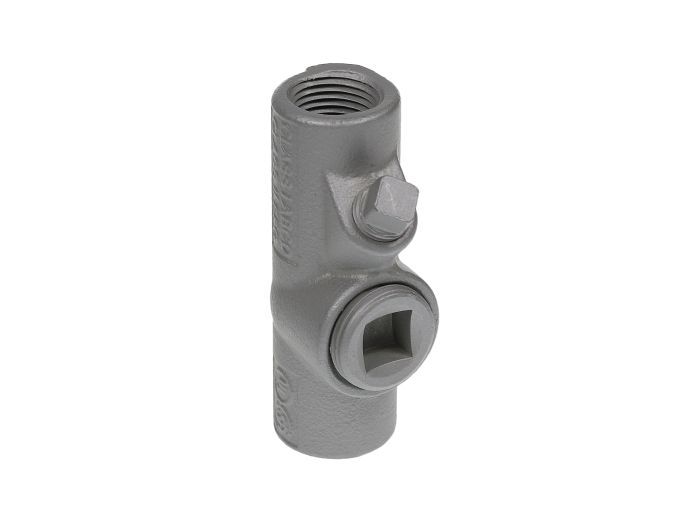

The APPLETON EYA-50 is a sealing fitting designed for use with IMC/Threaded Rigid Conduit. It is constructed from malleable iron with a zinc electroplated finish. This fitting is designed to seal conduits in vertical or horizontal runs. It minimizes the passage of gases and vapors and prevents the passage of flames.

• To seal conduits in vertical or horizontal runs
• To minimize the passage of gases and vapors and prevent the passage of flames from one portion of the electrical system to another through the conduit
• Explosion proof, dust-ignition proof

Product Highlights

The APPLETON EYA-50 sealing fitting is explosion-proof and dust-ignition-proof. Suitable for use with IMC and RMC conduit.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EYA-50

Technical Specifications

• Brand: Appleton
• Part Number #: EYA50
• SKU #: 1256132
• Finish: Zinc Electroplated
• Size: 1/2 in
• Suitable For Use With: IMC/Threaded Rigid Conduit
• Type: Type EYA Vertical/Horizontal
• Material: Malleable Iron
• Manufacturer Name: Emerson Electric
• Manufacturer Part Number: EYA50
• Manufacturer: Appleton
• Product Series: EYA
• Family Series: Appleton Fittings, EYA Series
• Description: 1/2 IN HOR/VERT SEALING FTG
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Connection Type: Female Hub - Drain
• Position: Vertical and Horizontal
• Trade Size: 1/2 "
• Turning Radius: 1.06 "
• Composition: Metallic
• Protection Rating: Raintight
• Hazardous Location: Yes
• Approvals: CSA, UL
• Connection: Female/Female, tapered FNPT
• Conduit Type: IMC, RMC
• Mounting: Vertical and horizontal
• Certifications: UL Listed, CSA Certified
• Application: Hazardous (classified) locations
• Mounting Type: Conduit fitting
• Category: Conduit & Fittings
• Subcategory: Explosionproof sealing fitting / drain
