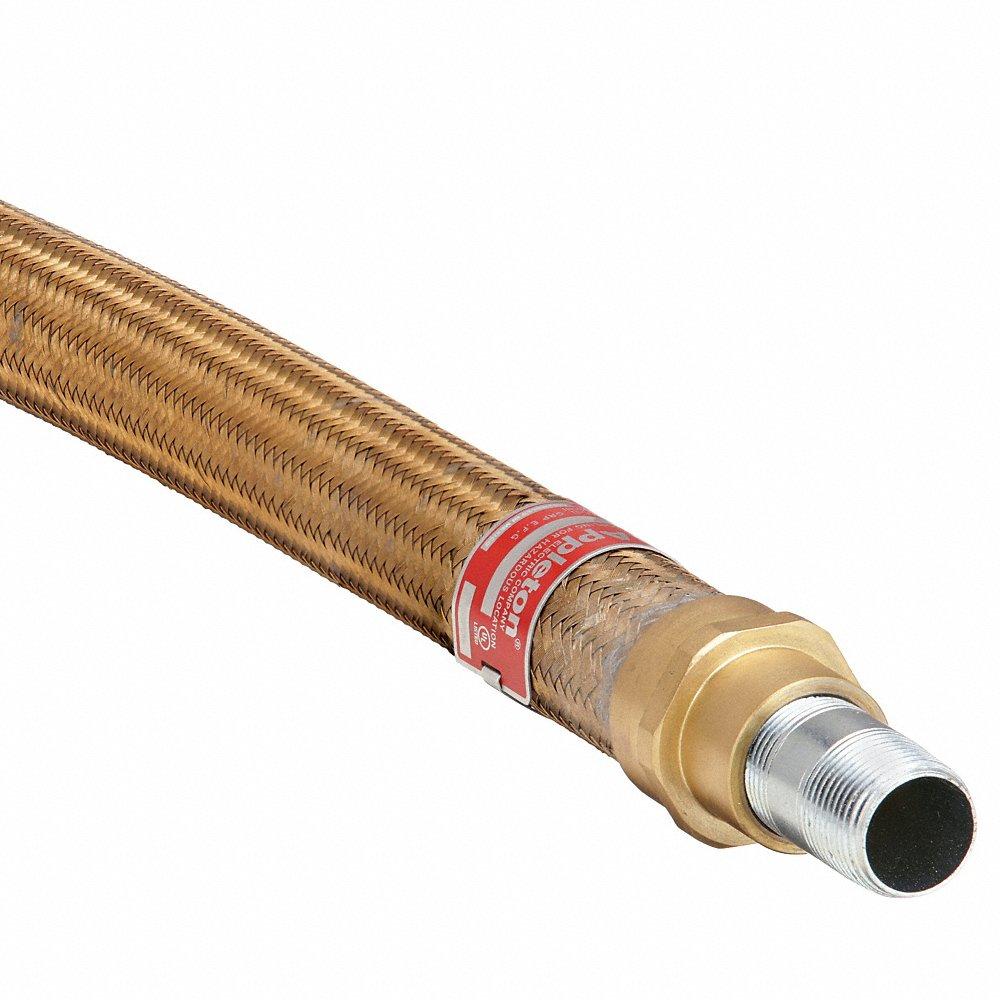

Appleton EXGJH-38 1x8 Flex Coupling

Product Description

The Appleton EXGJH-38 1X8 Flex Coupling is designed for use in areas where vibration and/or movement is a problem. It can be used in place of rigid conduit in difficult-bend situations. The coupling provides explosionproof and dust-ignitionproof protection wherever lengths of conduit are joined.

• Smooth, rounded integral bushing in each hub protects conductor insulation
• Accurately tapped, tapered threads for tight, rigid joints and ground continuity
• Heavy duty design resists mechanical abuse

Product Highlights

This flexible coupling is suitable for use with IMC/Threaded Rigid Metallic Conduit and provides a liquid-tight seal. It features a bronze braid and brass core for durability.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EXGJH-38
• Country of Origin: MX

Technical Specifications

• Connection Type: Threaded
• Material: Bronze
• Type: Explosionproof, Dust-Ignitionproof, Flexible
• Brand: Appleton
• Sub Brand: Unilet
• Finish: Natural
• GTiN: 00781381317108
• Product UPC: 78138131710
• Used With: Threaded Rigid Metal Conduit and IMC Conduit
• Manufacturer Part Number: EXGJH-38
• Manufacturer: Appleton
• Product Series: EXGJH
• Family Series: Appleton Couplers, EXGJH Series
• Description: Flexible Conduit Coupling, Trade Size 1 IN, Fitting Material Natural Finished Brass, Material Natural Finished Bronze Braid, Natural Finished Brass Core, End Type 2 Male Nipple,Flex Length 8 IN, Enclosure Class I Group C D, Class II Group E F G, Class
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Trade Size: 1 "
• Flex Length: 8 "
• Ground Pass Through: Yes
• Protection Rating: Liquid Tight
• Composition: Bronze
• Insulated Throat: Yes
• Hazardous Location: Yes
• Approvals: CSA, UL
• UNSPSC: 39131707
• Application: For areas where vibration or movement is a problem, place of rigid conduit in difficult bend situations, wet locations
• Size: 1
• Series: EXGJH
• Suitable For Use With: IMC/Threaded Rigid Metallic Conduit
• Item: Flexible Coupling
• Connection: Male To Male
• Core Material: Brass
• Ends - Hazardous Fittings: 1" MNPT x 1" MNPT
• Hazardous Location Rating: Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III
• Length: 8"
• Liner: Insulating
• Overall Length: 11 3/8"
• Thread Gender: Male To Male
• Thread Size: 1"
• Thread Type: NPT
