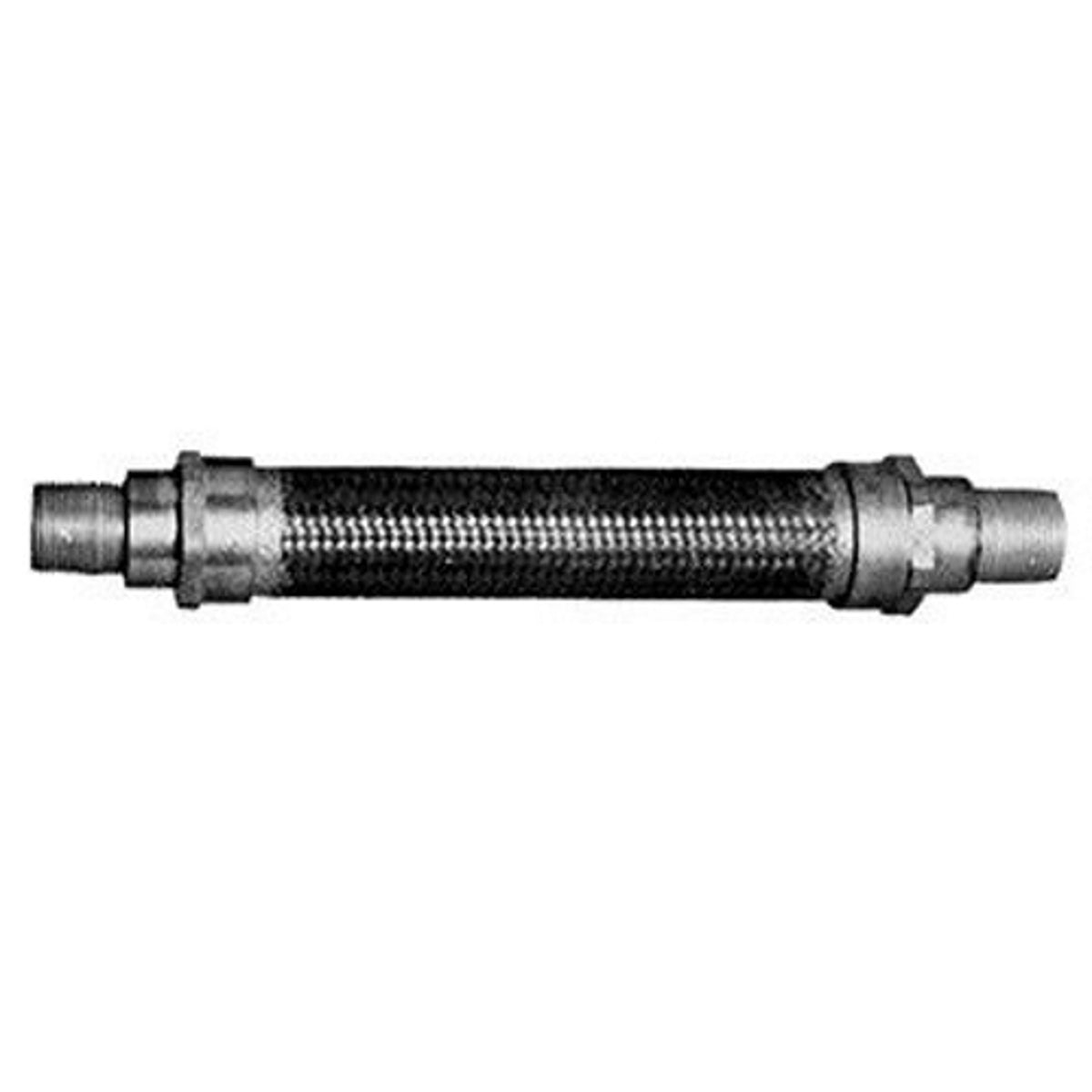

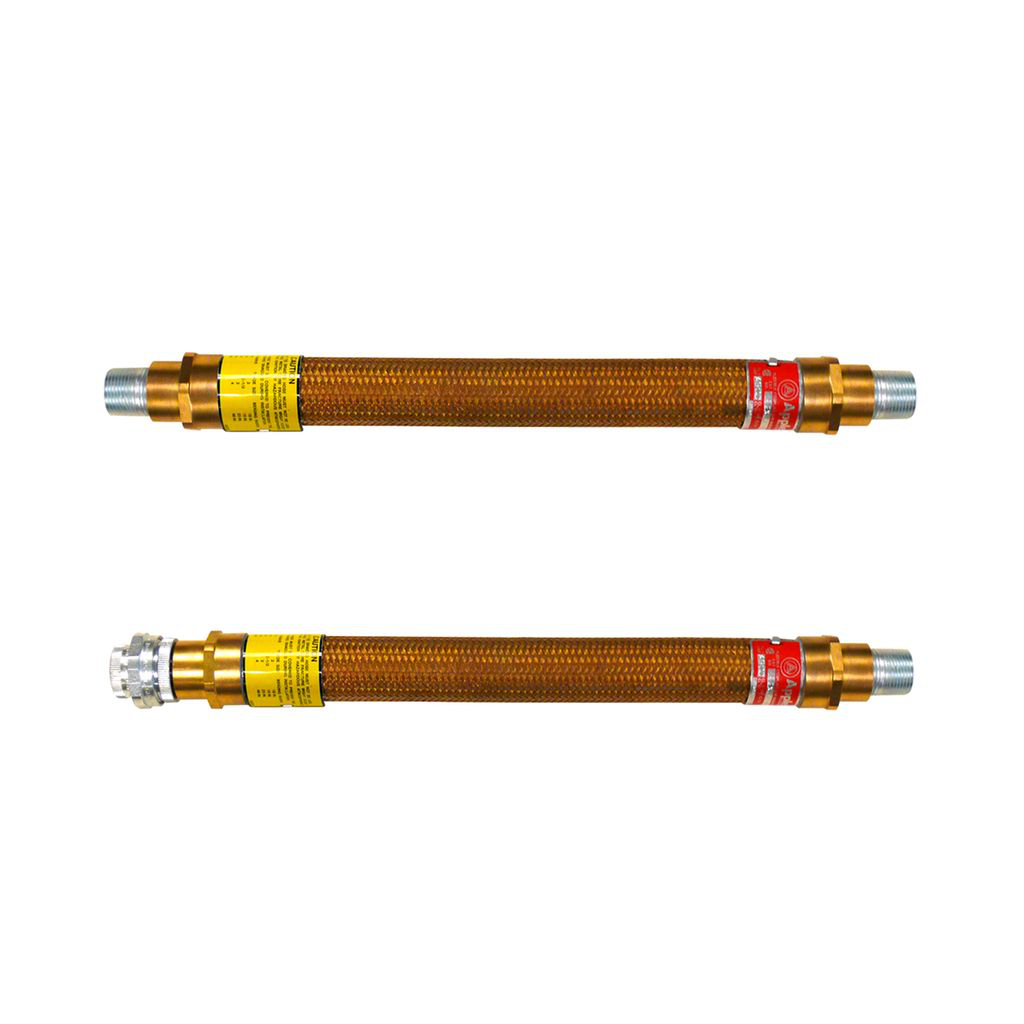

Appleton EXGJH-236 Explosion Proof Flexible Coupling 3/4 Inch

Product Description

The Appleton EXGJH-236 is a 3/4 inch explosion proof flexible coupling. It is designed for use in areas where there is vibration and movement. This coupling can replace rigid conduit in challenging bending situations.

• Explosion proof and dust ignition proof design
• Heavy duty with watertight features
• Compatible with threaded rigid metal conduit and IMC

Product Highlights

This flexible coupling ensures electrical conductivity equal to that of rigid conduit. It also has an interior insulating liner that protects conductors from abrasion.

Product Information

Standard Information

• Brand: Appleton
• MPN: EXGJH-236

Technical Specifications

• Trade Size: 3/4 inch
• Outside Diameter: 1.75 inches
• Length: 40.5 inches
• Radius: 12 inches bending
• Material: Brass, Bronze, Stainless Steel
• Connection Type: Female threaded
• Application: For use with threaded rigid metal conduit and IMC
• Special Features: Watertight; includes integral bushing
