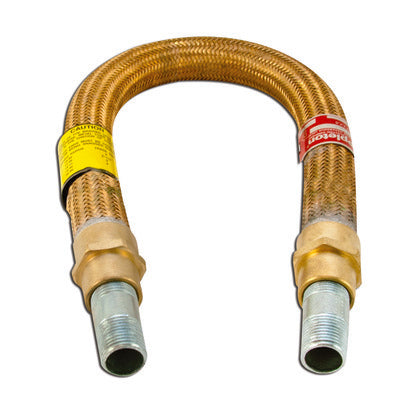

Appleton EXGJH-121 1/2x21 Flex Coupling

Product Description

The APPLETON EXGJH-121 1/2X21 Flex Coupling is designed for use in areas where vibration or movement is a problem. It can be used in place of rigid conduit in difficult-bend situations. Suitable for wet locations and has female end fittings with removable male nipples.

• Explosionproof and Dust-Ignitionproof
• Watertight with Brass End Fittings and Bronze Outer Braid
• Brass Inner Core with Insulating Liner

Product Highlights

The Appleton EXGJH flexible couplings are ideal for areas with vibration or movement, and as a substitute for rigid conduit in challenging bends.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EXGJH-121
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: EXGJH-121
• Brand: Appleton
• Manufacturer: Appleton Electric
• Model Number: EXGJH-121
• Unit Count: 1.0 Count
• Diameter: 1/2 in
• Length: 25.12 Inch
• Material: Bronze, Brass
• Product Series: EXGJH
• Family Series: Appleton Couplers, EXGJH Series
• Description: UNILETS Flexible Coupling, Trade Size: 1/2 IN, Outside Diameter: 1.41 IN, Flex Length: 21 IN, Radius: 10 IN Bending, Flexibility: Rigid And IMC, Material: Outer Bronze Braid And Inner Brass Core With Insulating Liner, End Type: 2 Male Nipples
• Conduit Type: IMC (Intermediate Metal Conduit), RMC (Rigid Metal Conduit)
• Connection Type: Threaded
• Trade Size: 1/2 in
• Flex Length: 21 "
• Ground Pass Through: Yes
• Protection Rating: Liquid Tight
• Composition: Bronze
• Insulated Throat: Yes
• Hazardous Location: Yes
• Approvals: CSA, UL
• For Use With: Threaded Rigid Metal Conduit And IMC
• Radius: 10 in
• Tc Connection: Female Threaded
• Sub Brand: UNILETS
• Finish: Natural
• Product UPC: 78138131735
• Outside Diameter: 1.41 in
• MPN: mros100123741-EXGJH-121
• UPC: Does not apply
• Country of Origin: United States
• MFR #: EXGJH-121
• Overall Length: 25-1/4 in
• Hub Size: 1/2 in
• Thread Size: 1/2 in
• Overall Length - Flexible Coupling: 25 1/4 in
• Item: IMC
• Conduit Fitting Type: Coupling
• Standards: CSA C22.2 No. 25, CSA C22.2 No. 30, UL 886
• Ends - Hazardous Fittings: 1/2 in MNPT x 1/2 in MNPT
• Hazardous Location Rating: Class I, Division 1 and 2, Groups A, B, C, D, Class II, Division 1 and 2, Groups E, F, G, Class III
• Includes: (2) Removable Male Nipples
• Application: Used In Areas Where Vibration and/or Movement is a Problem
• Insulated: Yes
• Thread Type: NPT
• Weight: 2.28 lb
• Thread Gender: Male to Male
• Series: EXGJH
• Connection Orientation: Multi-Angle
• Conduit Fitting Material: Bronze with Brass Core
• Fitting Sub-Category: Couplings
• Connection: Male to Male
• Item - Conduit Fitting: Flexible Coupling
• Compatible Conduit Type: IMC, RMC
