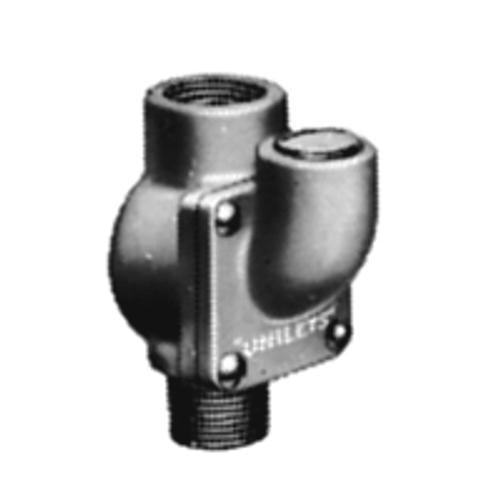

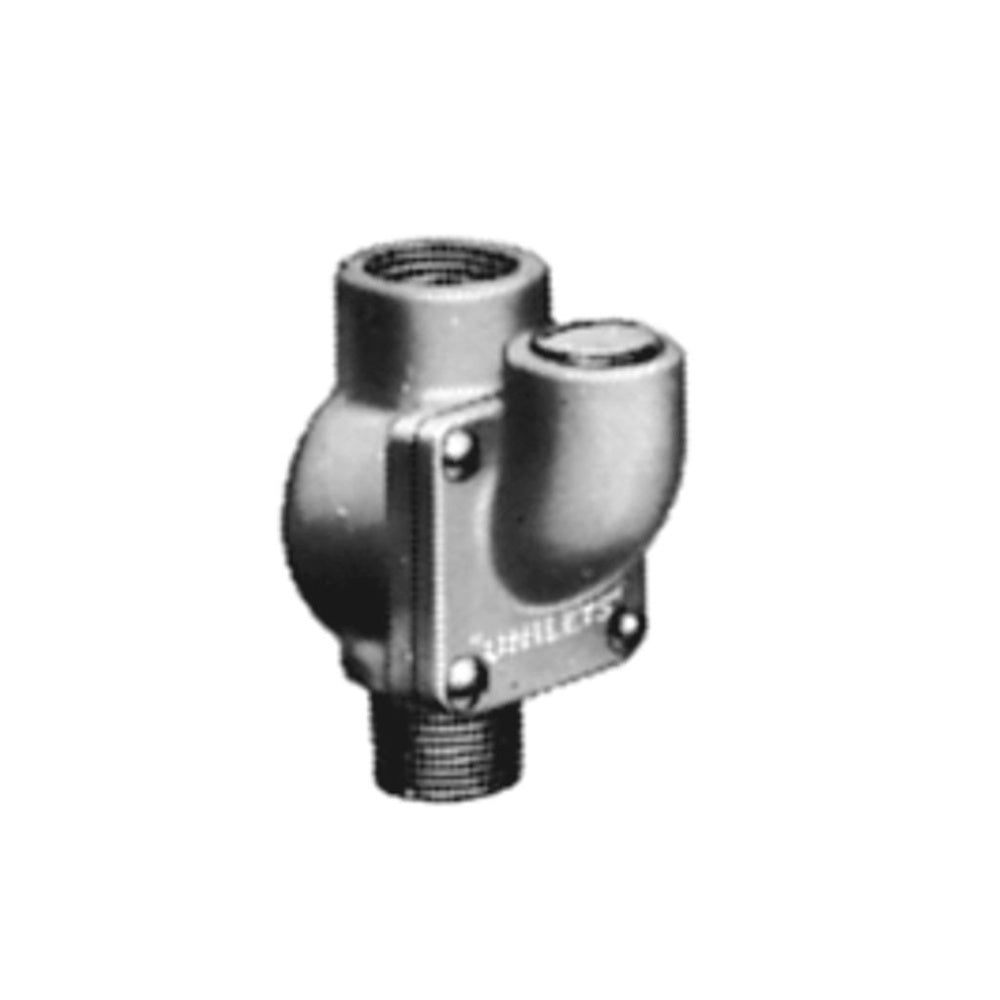

Appleton ESUM50 unilets Conduit Sealing Fitting 1/2 in

Product Description

The Appleton ESUM50 UNILETS conduit sealing fitting is dust-ignitionproof, explosionproof, and raintight. It is designed for use with IMC/threaded rigid metallic conduit. This fitting minimizes the passage of gases and vapors and prevents flames from traveling from one part of a conduit system to another. It also prevents pressure piling within the conduit system.

• Smooth, rounded integral bushing in each hub to protect conductor insulation
• Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
• Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub

Product Highlights

The Appleton ESUM50 is suitable for vertical or horizontal conduit and has a pouring spout that rotates 90 degrees.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ESUM50

Technical Specifications

• Brand: Appleton
• Part Number #: ESUM50
• Series: ESUM
• Size: 1/2 in
• Suitable For Use With: IMC/Threaded Rigid Metallic Conduit
• Type: Dust-Ignitionproof Explosionproof Raintight
• Material: Malleable Iron
• Manufacturer Name: Emerson Electric
• UNSPSC: 39121311
• Finish: Triple Coated
• Application: For prevent passage of gases, vapors or flames from one portion of conduit system to another
• Component: Sealing Fitting
