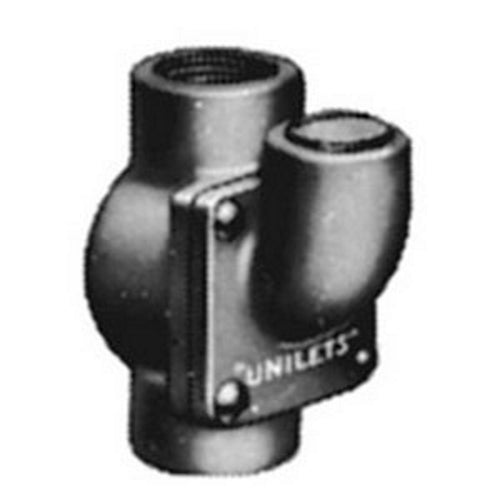

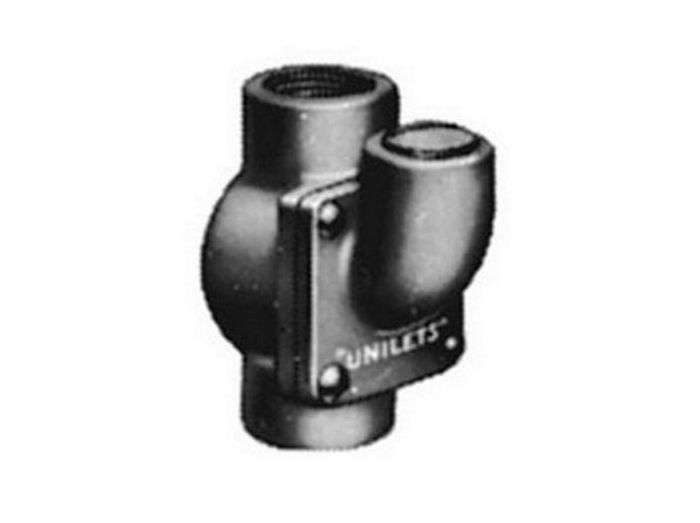

Appleton ESUF75 conduit sealing fitting 3/4 in

Product Description

The APPLETON ESUF75 conduit sealing fitting is dust-ignitionproof and explosionproof. It minimizes the passage of gases and vapors and prevents the passage of flames from one portion of a conduit system to another. Designed for use with IMC/threaded rigid metal conduit. The series provides a pouring spout that rotates 90 degrees for sealing vertical or horizontal conduit.

• Smooth, rounded integral bushing in each hub protects conductor insulation
• Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity
• Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub

Product Highlights

The APPLETON conduit sealing fitting restricts any explosion to the sealed off enclosure and is required in class I, Division 1 and 2 locations.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ESUF75
• Country of Origin: MX

Technical Specifications

• Brand: Appleton
• Part Number #: ESUF75
• SKU #: 3333
• UNSPSC: 39121311
• UPC: 00781381306409
• Application: For Use With Threaded Rigid Metal Conduit and IMC
• ARRA Compliant: N
• Buy American Compliant: N
• Catalog Number: ESUF75
• Connection: Tapered FNPT
• Country of Origin: MX
• Series: ESU
• Standard: UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181
• Standards: Class I, Division 1, 2, Groups C, D, Class II, Division 1, 2, Groups E, F, G, Class III, UL 886, 1203, File No. E10444 Listed, CSA C22.2 No.30, 065181 Certified
• Sub Brand: UNILETS
• Type: Dust-Ignitionproof Explosionproof
• UPC 11: 78138130640
• UPC 12: 781381306409
• Manufacturer: Appleton
• Finish: Zinc Electroplate/Chromate/Epoxy Powder Coat
• Material: Malleable Iron
• Size: 3/4 in
• Suitable For Use With: IMC/Threaded Rigid Metal Conduit
• Mounting: Female/Female
• Special Features: 1-1/4 in turning radius Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity For sealing vertical or horizontal conduit Pouring spout rotates 90 deg Prevent passage of gases, vapors or flames from one portion of conduit system to another Removable cover provides full access for damming 1/2 to 1 in sizes have threaded cover openings for damming Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub Required in class I, Division 1 and 2 locations at the boundary where conduit leaves classified location Required in class I, Division 1 and 2 locations where 2 in or larger conduit enters enclosure, fitting housing terminals, splices or taps Required in class I, Division 1 and 2 locations where two or more enclosures are connected by 36 in or less conduit Required in class I, Division 1 and 2 locations within 18 in of enclosures containing apparatus that may cause arcs, sparks or high temperatures Restrict any explosion to the sealed off enclosure Seal must be located within 18 in of either enclosure Smooth, rounded integral bushing in each hub protects conductor insulation Triple coat of zinc electroplate, chromate and epoxy powder coated finish
• Trade_Size: 3/4
• Product Series: ESU
• Family Series: Appleton Fittings, ESU Series
• Description: UNILETS ESU Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting, Size: 3/4 IN, Material: Malleable Iron, Finish: Triple-Coat Zinc Electroplate, Chromate And Epoxy Powder Coat, Connection: Tapered FNPT, Turning Radius: 1-1/
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Connection Type: Female Hub
• Position: Vertical and Horizontal
• Turning Radius: 1.25 "
• Composition: Metallic
• Hazardous Location: Yes
• Gross Weight: 1.23 lbs
