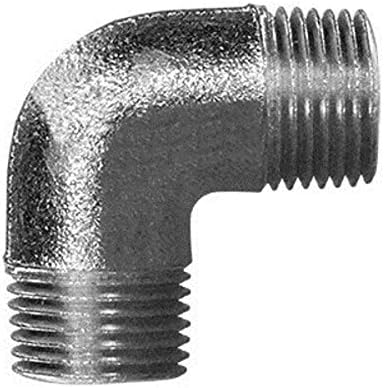

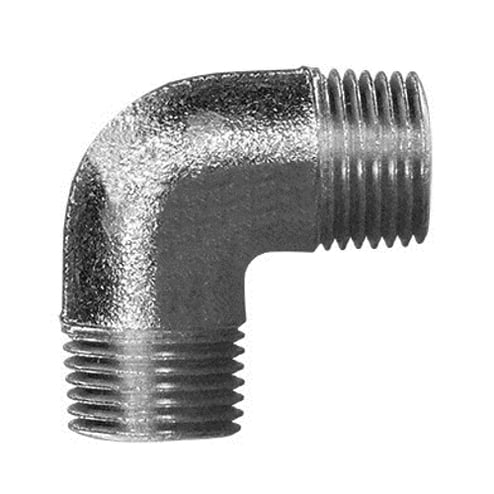

Appleton ELM90-75 90 Deg Elbow 3/4 Male Elbow

Product Description

The APPLETON ELM90-75 90 Deg Elbow is designed for use with threaded rigid metal conduit and IMC. It features accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity. The elbow is made from malleable iron and has a zinc electroplated finish.

• For Use With Threaded Rigid Metal Conduit And IMC
• Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity
• Smooth, rounded integral bushing in each hub to protect conductor insulation

Product Highlights

The APPLETON ELM90-75 is a 90-degree elbow suitable for use with threaded rigid metal conduit and IMC, ensuring secure connections and ground continuity.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ELM90-75
• Country of Origin: MX

Technical Specifications

• Brand: Appleton
• Connector Type: Elbow
• Manufacturer: Appleton
• Unit Count: 1.0 Count
• Material: Malleable Iron
• Diameter: 3/4 in
• MFR #: ELM90-75
• Country of Origin: Mexico
• Trade Size: 3/4 in
• Overall Length: 1-11/16 in
• Length: 1-11/16"
• Compatible Conduit Trade Size: 3/4 in
• Item: IMC
• Conduit Fitting Type: 90 Deg Elbow
• Connection Type: Threaded
• Finish: Powder Coated
• Application: Elbow for Threaded Rigid Metal Conduit and IMC
• Ends - Hazardous Fittings: 3/4 in MNPT x 3/4 in MNPT
• Standards: CSA C22.2 No. 25, CSA C22.2 No. 30, CSA Certified File 065181, UL 1203: 886, UL Listed File E34997
• Hazardous Location Rating: Class I, Division 1 and 2, Groups A, B, C, D, Class II, Division 1 and 2, Groups E, F, G, Class III
• Insulated: Yes
• Number of Pieces: 1
• Series: ELM
• Connection Orientation: 90 Degrees
• Body Style: ELM
• Fitting Type: Elbow
• Thread Type: NPT
• Thread Gender: Male to Male
• Item - Conduit Fitting: 90 Degrees , Elbow
• Connection: Tapered MNPT
• Conduit Fitting Material: Malleable Iron
• Fitting Sub-Category: Elbows
• Compatible Conduit Type: IMC, Threaded RMC
• For Use With: IMC, Threaded Conduit
• MPN: ELM90-75
• Item Diameter: N/A
• Special Features: Accurately tapped, tapered NPT threads for tight, rigid joints and ground continuity, Smooth, rounded integral bushing in each hub to protect conductor insulation
• Standard: UL 886, UL File Number E10444, CSA C22.2 No. 25 And 30, CSA 065181, UL Listed For Class I, Groups A, B, C, D; Class II, Groups E, F, G; And Class III
• Sub_Brand: Appleton
• Trade_Size: 3/4
• Type: Dust-Ignitionproof Explosionproof
