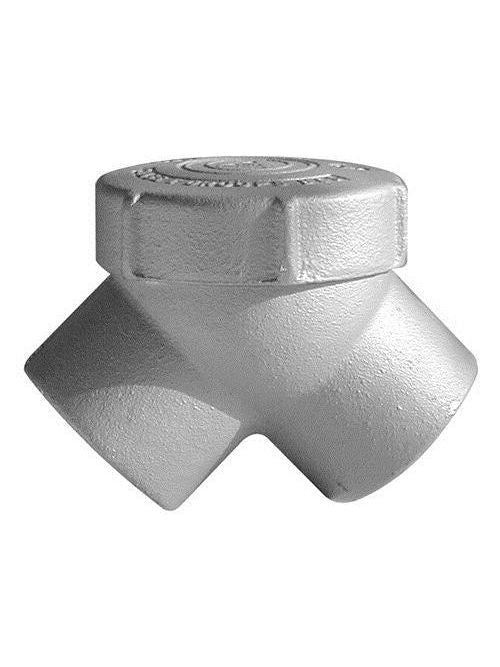

Appleton ELBY-100 1 90deg Capped Elbow

Product Description

The Appleton ELBY-100 is a 1-inch, 90-degree capped elbow fitting made of malleable iron. Designed for use in metal conduit systems, it provides a robust and reliable connection. The elbow features a triple-coat finish including zinc electroplate, chromate, and epoxy powder coat for added durability. The female threaded design allows for easy installation and maintenance.

• 90-degree bend angle for conduit runs
• Explosion-proof and dust-ignition-proof rated
• Compatible with EMT and rigid conduit systems

Product Highlights

This fitting serves as a pulling fitting, making it efficient for cable installation within conduit systems.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Trade Size: 1 inch

Technical Specifications

• Material: Malleable Iron
• Length: 3.19 inches
• Connection Type: Female Threaded
• Flexibility: EMT
• Approval Standards: UL 886, UL File No. E10444
• Special Features: Serves as pulling fitting; Provides easy access to conductors; Raintight design
• Country of Origin: Mexico
• GTIN: 00781381293709
