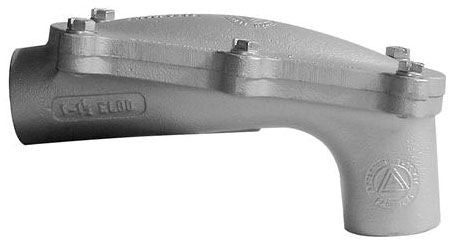

Appleton ELBD75 3/4 Inch 90 Degree Pull Elbow

Product Description

The APPLETON ELBD75 is a 3/4 inch 90-degree pull elbow designed for use in conduit wiring systems. Pull elbows allow electricians to route conductors through directional changes in a raceway while providing an accessible point for pulling wire. The fitting installs at 90-degree bends in the conduit run and includes a removable cover plate that opens the interior for wire pull access. This type of conduit fitting is a standard component in commercial and industrial electrical installations where code-compliant wire management is required.

The ELBD75 is suited for 3/4 inch conduit runs in commercial and industrial environments. It is commonly used where conductors must navigate a 90-degree turn within a raceway and the installer needs a serviceable access point at that location. Licensed electricians install this fitting during conduit rough-in or retrofit work where wire pull access at elbows is a practical necessity.

Key Features

• 3/4 inch trade size fits standard 3/4 inch conduit systems
• 90-degree pull elbow configuration for directional conduit transitions
• Removable cover plate provides interior access for wire pulling and inspection
• Designed for commercial and industrial conduit raceway applications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 3/4 inch conduit raceway systems.

Installation Notes

Installation is performed by a licensed electrician in accordance with NEC requirements for conduit fittings and raceway assemblies. De-energize all circuits in the affected conduit run before beginning work. Secure the fitting to the conduit using the appropriate thread engagement or coupling method for the conduit type in use. Ensure the cover plate is fully seated and fastened after wire pulling is complete.

Technical Specifications

• Trade Size: 3/4 inch
• Angle: 90 degrees
• Type: Pull Elbow
• UPC: 78138129315

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ELBD75
