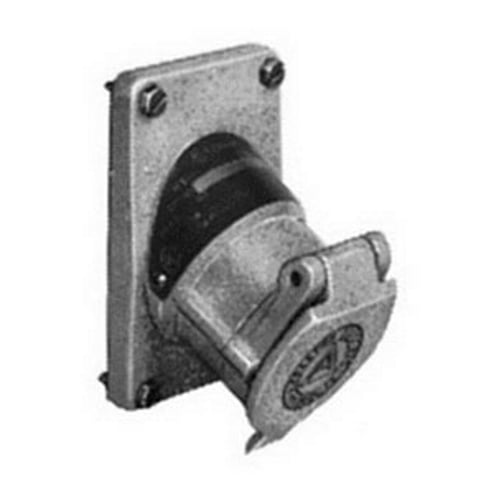

Appleton EFSR-2023M Explosion-Proof Receptacle 20 Amp

Product Description

The APPLETON EFSR-2023M is an explosion-proof straight blade receptacle from the EFSR Series, rated for 20 Amps and 125V AC. Designed for use with EFD Type Outlet Boxes. U-Line factory sealed plugs and receptacles are used with stationary or portable electrically operated devices in hazardous locations.

• Explosion-Proof
• Straight Blade
• 20 Amps
• 125V AC

Product Highlights

Ensures safe connections in hazardous locations. Features a spring door and is made from malleable iron. Suitable for lighting systems, conveyors, heaters, and more.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EFSR-2023M
• Country of Origin: MX

Technical Specifications

• Material: Malleable Iron
• Amps: 20
• Gangs: 1
• Volts AC: 125
• IP/NEMA Rating: NEMA 3/3R
• Brand Name: Appleton
• Manufacturer: Emerson Electric Co. (Appleton)
• UPC: 781381397360
• UNSPSC: 39121406
• Voltage Rating: 125 VAC
• Mating Plug: ECP
• Enclosure: Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group F G, Class III, NEMA 3/3R/7B/7C/7D/9F/9G
• Current Rating: 20 Ampere
• Approval: UL 894/1010/1203, CSA C22.2
• Power Rating: 1 HP
• Number of Wires: 2
• Number of Poles: 3
• Additional Info: Application Lighting system, Conveyor, Heater, Motor Generator Set, Air Conditioner, Compressor, Pumps
• Application: For ECP Mating Plugs
• Mounting: Box
• Special Features: ECP plug fits any standard non explosionproof receptacle (NEMA 5-20R, or 6-20R) as well as U-Line Energized receptacle contacts deeply recessed to reduce danger of accidental touching Factory sealed, external seals not required in most areas, arcing is safely confined to receptacle interior Glass filled reinforced polyester insulating blocks Insulators provide superior dielectric and mechanical strength and lowest arc tracking Intermateable with competitor's plugs of like configurations Unique blade type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact
• Standard: Class I, Division 1 And 2 Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 And 2 Groups F, G; Class III; UL?Listed:?E10784, ?E81751; UL?Standard:?1203, ?1010, ?894; CSA?Standard:?C22.2?No.?25, ?C22.2?No.?30, ?C22.2?No.?42, ?C22?No.159; CSA?Certified: 038644
• Sub_Brand: Appleton
