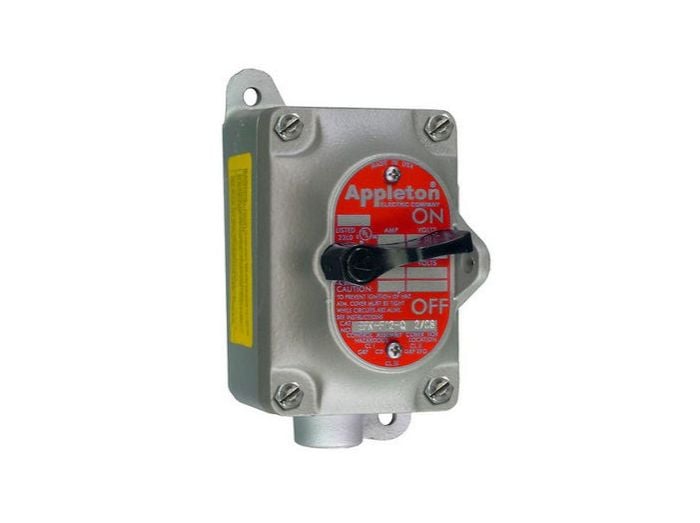

Appleton EFSC275-F13 1P 2-Gang 30A Switch

Product Description

The Appleton EFSC275-F13 1P 2-Gang 30A Switch is an explosionproof tumbler switch with a feed-through enclosure. Designed for hazardous locations, it features a front-operated lever and a double-gang box type. It is rated for 120 to 277 VAC and 30 Amperes. The switch is suitable for use with stationary or portable electrically operated devices.

• Energized receptacle contacts are deeply recessed to reduce the danger of accidental touching.
• Unique blade-type, brass contacts exert constant pressure along the entire contact surface.
• Insulators provide superior dielectric and mechanical strength and lowest arc tracking.

Product Highlights

This Appleton switch is explosionproof and dust-ignitionproof, suitable for a range of industrial applications. It features robust construction and reliable performance in hazardous environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: EFSC275-F13

Technical Specifications

• Manufacturer Part Number: EFSC275-F13
• Manufacturer: Appleton
• Product Series: EFS
• Family Series: Appleton Switches, EFS Series
• Description: Explosionproof Tumbler Switch, Type Feed Through, Constructional Feature Explosionproof, Dust-Ignitionproof
• Voltage Rating: 120 to 277 VAC
• Current Rating: 30 A
• Contact Configuration: 1-Pole
• Operator Type: Front Operated Lever
• Box Type: Double Gang
• Number of Gangs: 2
• Switch Type: 1-Pole
• Enclosure: Feed-Thru
• Material: Iron
• Hub Size: 3/4 "
• Voltage: 120-277 VAC
• Type of Operator: Front Operated
• Mounting: Mounting Holes
• Horsepower: 2 hp @ 120 VAC, 2 hp @ 240 VAC
• NEMA Rating: NEMA 7CD, NEMA 9EFG
• Approvals: UL
• Comments: Explosionproof, Dust-Ignitionproof
