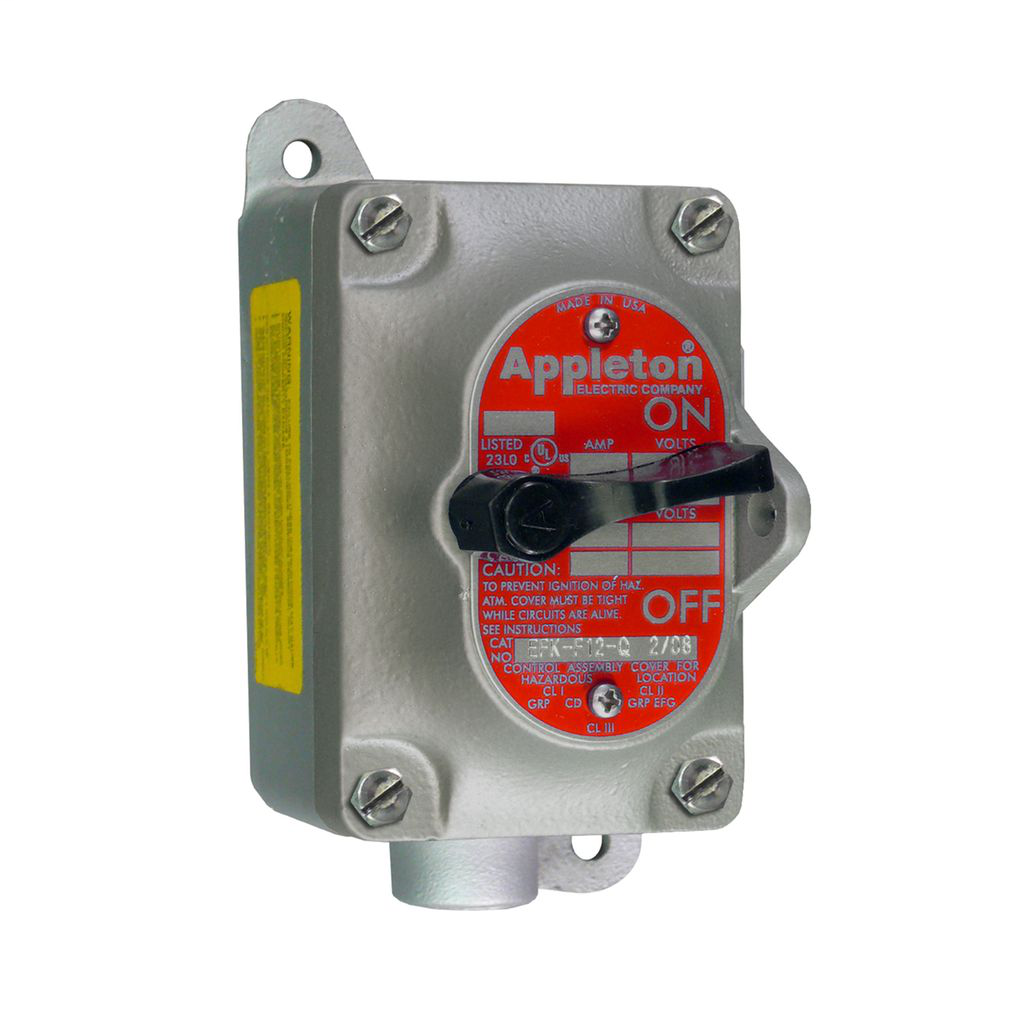

Appleton EFS175-F1 Explosion Proof Switch 3/4 1 Pole

Product Description

The Appleton EFS175-F1 is an explosion-proof switch designed for harsh environments. It is ideal for applications where ignitable vapors, gases, or combustible dusts are present. This switch is suitable for use in chemical and petrochemical plants, refineries, and other industrial settings.

• Explosion proof and dust ignition proof.
• Designed for 120 to 277 Volt AC operations.
• 1 pole contact configuration for effective control.

Product Highlights

This product ensures safety and reliability in hazardous areas, preventing potential hazards during electrical connections and disconnections.

Product Information

Standard Information

• Brand: Appleton Electric
• Catalog Number: EFS175-F1

Technical Specifications

• Voltage Rating: 120 to 277 VAC
• Amperage Rating: 20 Amp
• Enclosure Type: NEMA 7CD, 9EFG
• Hub Size: 3/4 inch
• Mounting: Surface
• Actuator Type: Front Operated
• Material: Malleable Iron with Zinc Electroplated Dichromate Epoxy Powder Coating
• Approval: UL 894, UL 1203
• Application: Designed to prevent arcing in ignitable atmospheres
