Appleton EFDCB17535 2Pos-4Ckt Selector Switch Station

Product Description

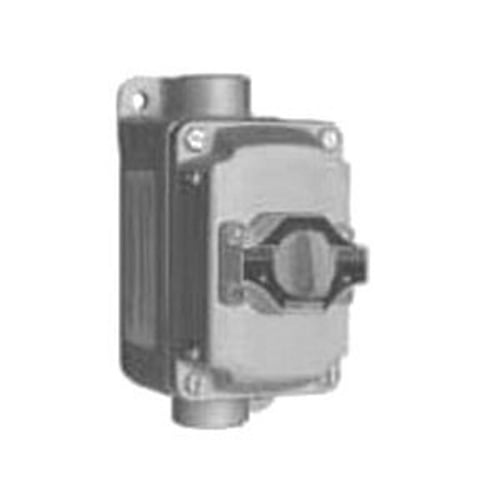

The Appleton EFDCB17535 is a 2-position, 4-circuit selector switch station designed for industrial use. This product features maintained operation and can handle up to ten amps at six hundred volts AC. It is housed in a NEMA 3 enclosure, making it suitable for various applications including remote control of motors in conjunction with contactors or magnetic starters.

• Compatible with UL standards including UL 508, UL 698, and UL 1203.
• Surface mount design with a three-quarter inch feed-thru hub.
• Durable construction suited for Class I, Division 1 and 2, and Class II, Division 1 and 2 environments.

Product Highlights

This selector switch is designed for ease of installation and reliable operation in industrial settings.

Product Information

Standard Information

• Brand: Appleton Electric
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: EFDCB17535
• Enclosure Rating: NEMA 3, 7CD, 9EFG
• Number of Circuits: 4
• Number of Positions: 2
• Contact Rating: 10 AMP at 600 VAC
• Mounting Type: Surface
• Application: For use with contactors or magnetic starters
• Hub Size: Two 3/4 inch
• Current Rating: 10 AMP
