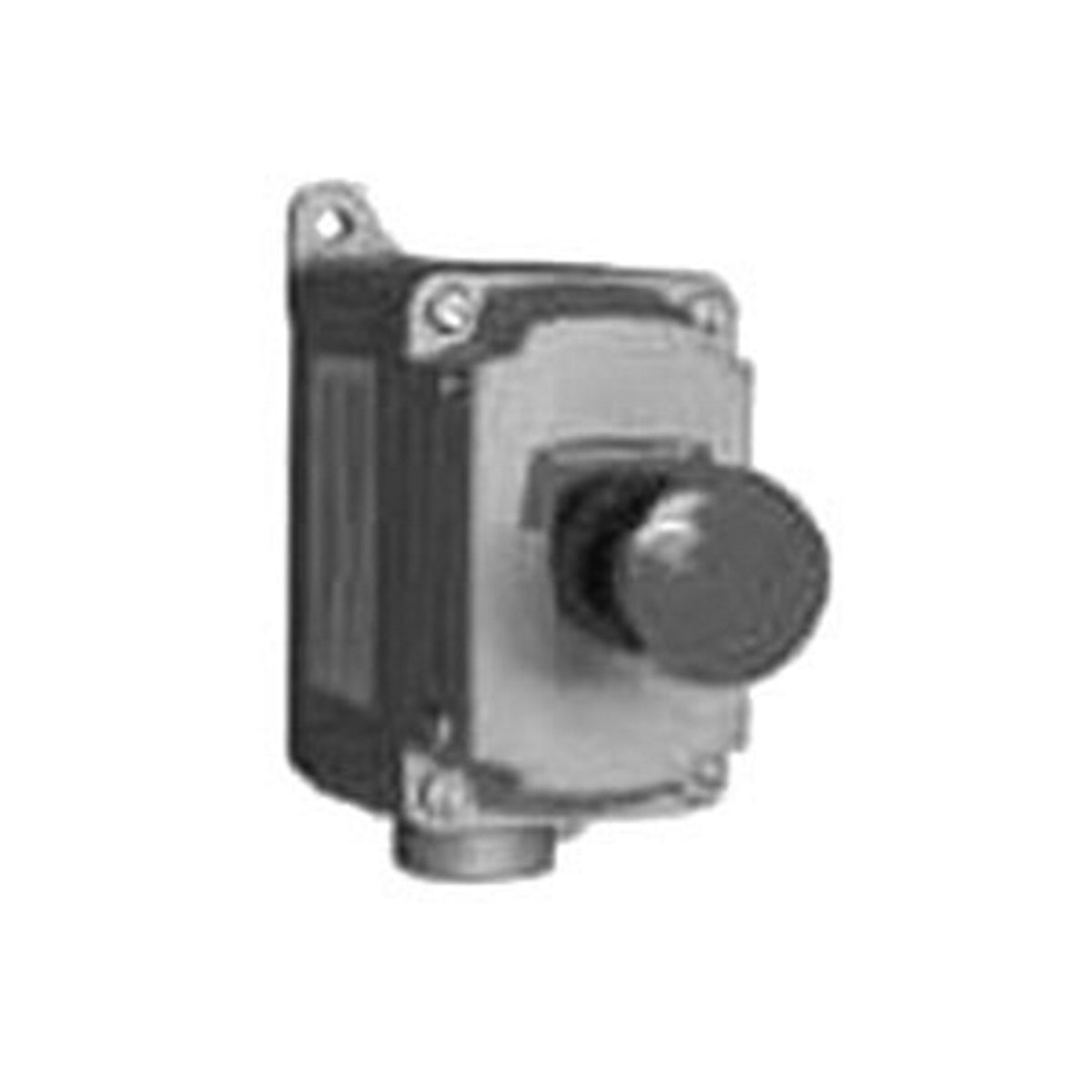

Appleton EFDCB150UM1 Pushbutton Switch Station 600 VAC (1-Gang 1-Circuit Feed-Through) Replacement MPN

Product Description

The Appleton EFDCB150UM1 is a pushbutton switch station designed for efficient motor control. This product features a maintained action with a contact configuration of one normally open and one normally closed. It is rated for ten amps at six hundred volts alternating current. The body is made of malleable iron with a copper-free aluminum cover and is engineered for surface mounting.

• Contact Configuration: 1 NO / 1 NC
• Enclosure Type: NEMA 3
• Height: 4.63 inches, Width: 6.19 inches, Depth: 4.69 inches

Product Highlights

This pushbutton switch station is suitable for use in hazardous locations, providing reliable control of motors with positive contact integrity.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: EFDCB150UM1

Technical Specifications

• Voltage Rating: 600 VAC
• Current Rating: 10 Amps
• Action: Maintained
• Material: Malleable Iron, Copper-Free Aluminum
• Special Features: Equipped with a red mushroom head actuator and internal ground screw
• Mounting Type: Surface Mount with a 1/2 Inch feed-thru hub
• Compliance: UL listed under standard UL 508, UL 698, UL 1203
• Country of Origin: Mexico
