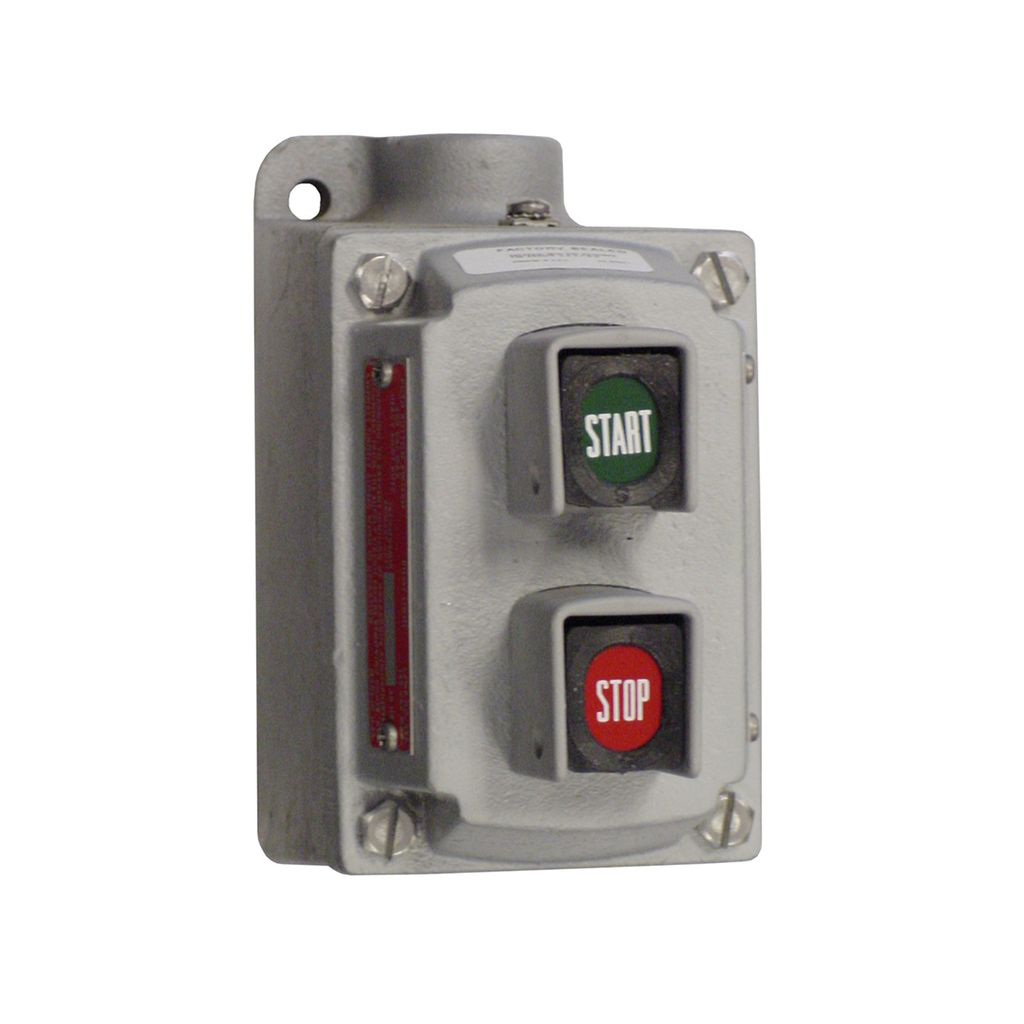

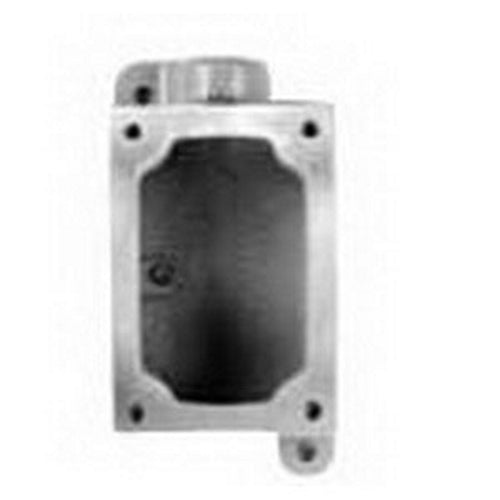

Appleton EDSC271SA 3/4 Single Gang EDSC Control Station Mounting Body

Product Description

Appleton EDSC271SA is a control station mounting body designed for harsh environments. This product is ideal for use with Contender series control stations. It features a feed-through type design and is made of aluminum for durability. This mounting body operates effectively in areas with flammable vapors, gases, and combustible dusts. It complies with multiple safety standards.

• Explosionproof and dust-ignitionproof design
• Sealed enclosure eliminates additional sealing fittings
• Multiple configurations available with various push buttons and switches

Product Highlights

This control station mounting body is suitable for use in chemical plants and refineries. Its internal ground screw aids in safety and reliability.

Product Information

Standard Information

• Catalog Number: EDSC271SA
• Brand Name: Appleton

Technical Specifications

• Material: Aluminum
• Size: 3.72 inches width x 3.06 inches depth x 6.81 inches height
• Zone Classification: Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III
• Hub Size: 3/4 inches
• Number of Gangs: 1
• Number of Hubs: 2
• Mounting Type: Lugs
