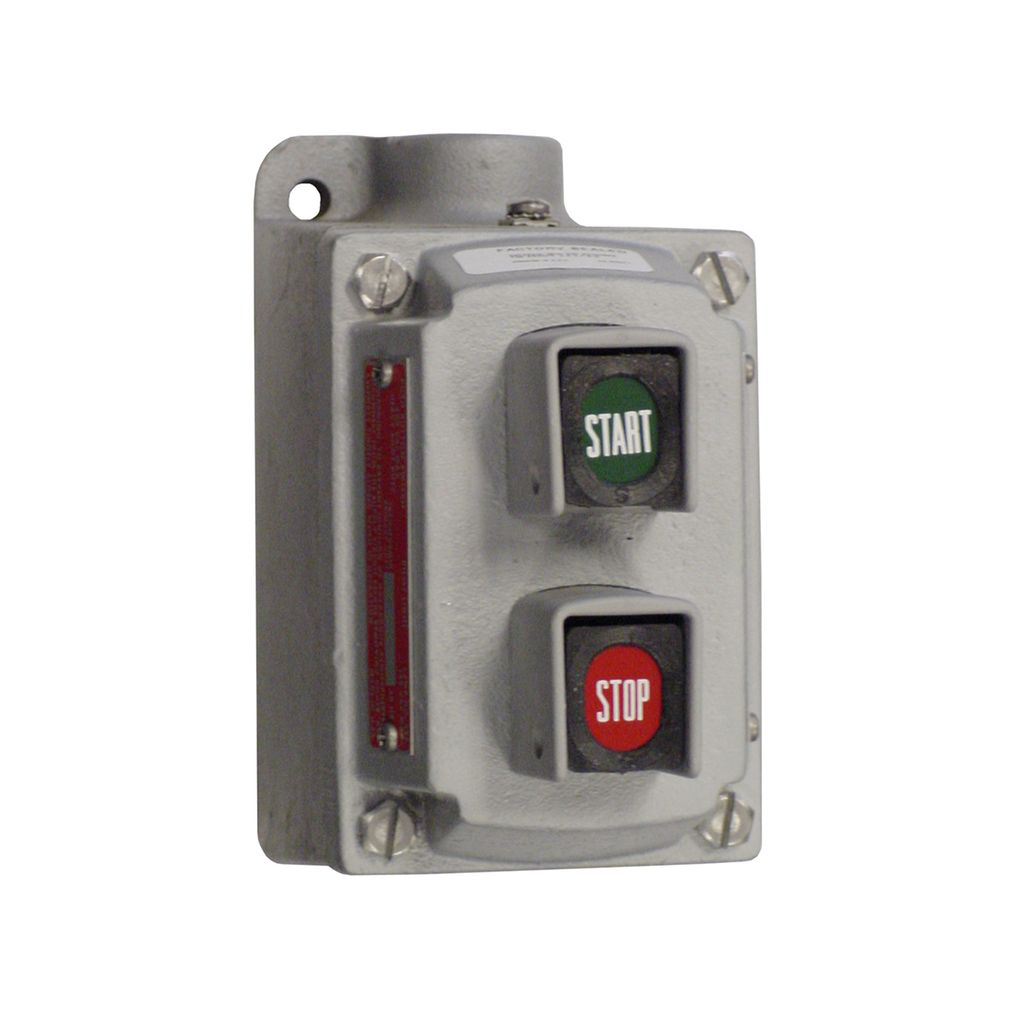

Appleton EDSC21271 CNTL STA Control Station Explosionproof 600VAC Replacement

Product Description

The Appleton EDSC21271 CNTL STA is a control station designed for use in hazardous locations. This control station is explosionproof and dust-ignitionproof, ensuring safety in environments where flammable vapors or combustible dust may be present. It features a factory sealed design that confines the arcing of devices, preventing ignition during control operation.

• Explosionproof and dust-ignitionproof design
• Factory sealed to eliminate the need for additional sealing fittings
• Variety of push buttons and pilot lights available

Product Highlights

This control station is suitable for chemical plants, refineries, and other process industries. It allows for remote control of motors and equipment using various push buttons and switches.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: EDSC21271
• Rated Voltage: 600 VAC
• Current Rating: 10 Amperes
• Contact Configuration: 2NO-2NC
• Hub Size: (2) 3/4 inch
• UPC: 78138169858
