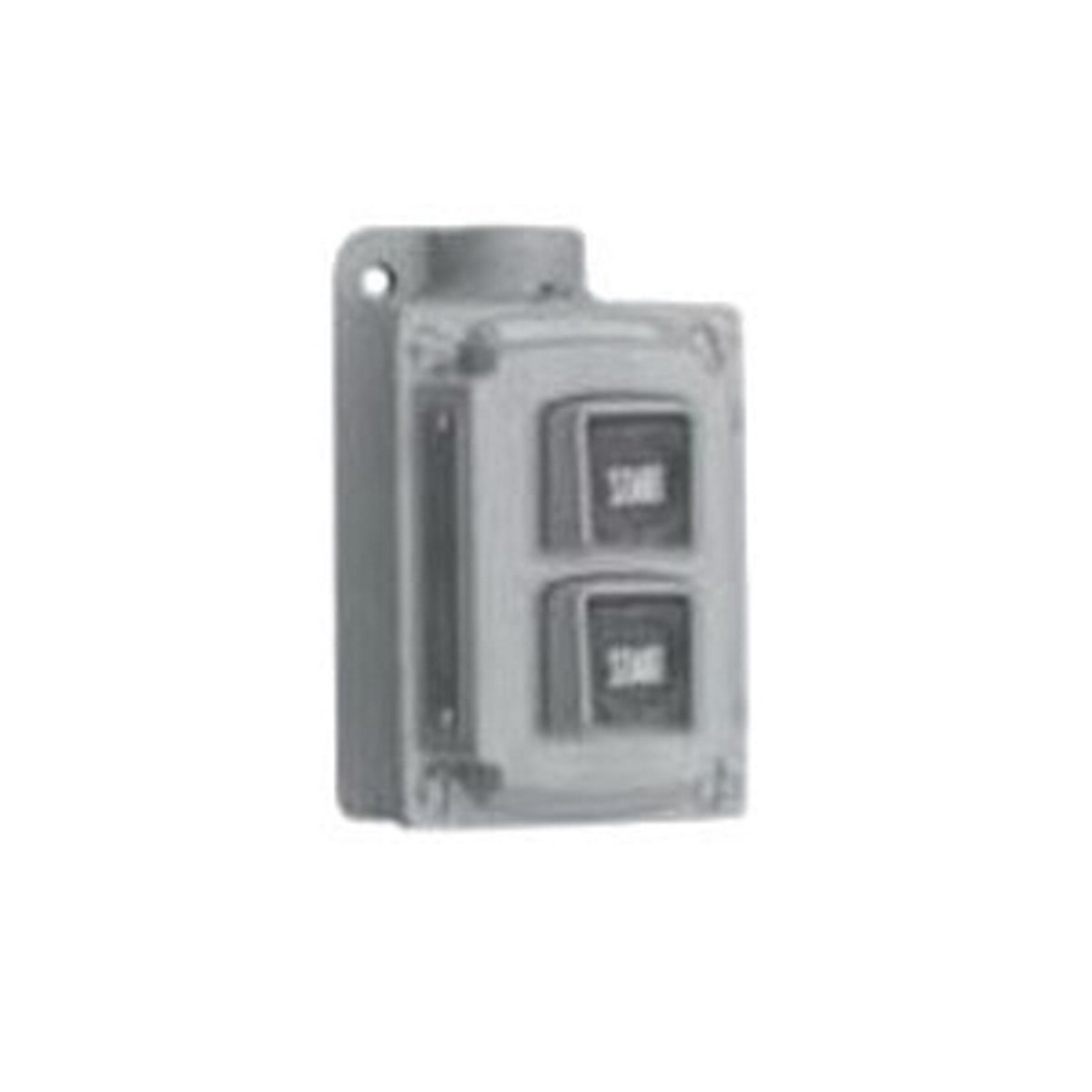

Appleton EDS2190 Contender Pushbutton Station 600 Volt AC 10 Amp Momentary 2NO/2NC

Product Description

The Appleton EDS2190 is a Contender pushbutton station designed for effective motor control. It operates at six hundred volts alternating current and supports up to ten amps of current. This station features a momentary action with two normally open and two normally closed contacts, making it suitable for various applications.

• Operating Voltage: 600 VAC
• Contact Rating: 10 Amps
• Enclosure Type: NEMA 3, 7CD, 9EFG

Product Highlights

This pushbutton station is reliable for remote control of motors. It has a sturdy design with an actuator that is front operated and a durable malleable iron body.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Brand: Appleton

Technical Specifications

• Action: Momentary
• Contact Configuration: 2 NO / 2 NC
• Mounting Type: Surface Mount with three-quarter inch dead-end hub
• Height: 5.31 inches
• Width: 3.72 inches
• Depth: 3.06 inches
• Country of Origin: Mexico
• Standards: UL 508, UL 698, UL 1203
