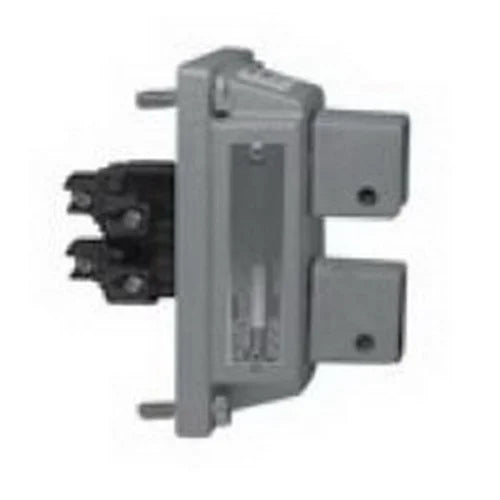

Appleton EDKB-U2 Push Button Switch with Cover Assembly 600 VAC 10 A Malleable Iron 2NO 2NC

Brand: APPLETON
SKU: EDKB-U2
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm

$463.68
$463.68
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Appleton EDKB-U2 is a push button switch with cover assembly designed for industrial applications. This unit operates under a voltage of six hundred volts AC and handles a current rating of ten amperes. It is made of malleable iron and features a robust cover for added protection in demanding environments. The switch offers a two normally open (2NO) and two normally closed (2NC) contact configuration.

  • Suitable for use with Contender bodies and standard EDS bodies.
  • Compliant with Class I Division 1 and 2 standards for hazardous locations.
  • Easy to install with a screw mounting system.

Product Highlights

This product is ideal for applications requiring reliable momentary operation in potentially explosive atmospheres.

Product Information

Standard Information

  • Brand: Appleton
  • MPN: EDKB-U2

Technical Specifications

  • Material: Malleable Iron
  • Operation Type: Momentary
  • Contact Rating: 600 VAC, 10 A
  • Contact Configuration: 2NO, 2NC
  • Standard Compliance: Class I Div 1 and 2, Groups C, D; Class II Div 1 and 2, Groups E, F, G; Class III
  • Mounting Type: Screw
  • Country of Origin: Mexico
  • UPC: 781381673990
