Appleton ECS175 Mounting Box 3/4 Inch Hub

Product Description

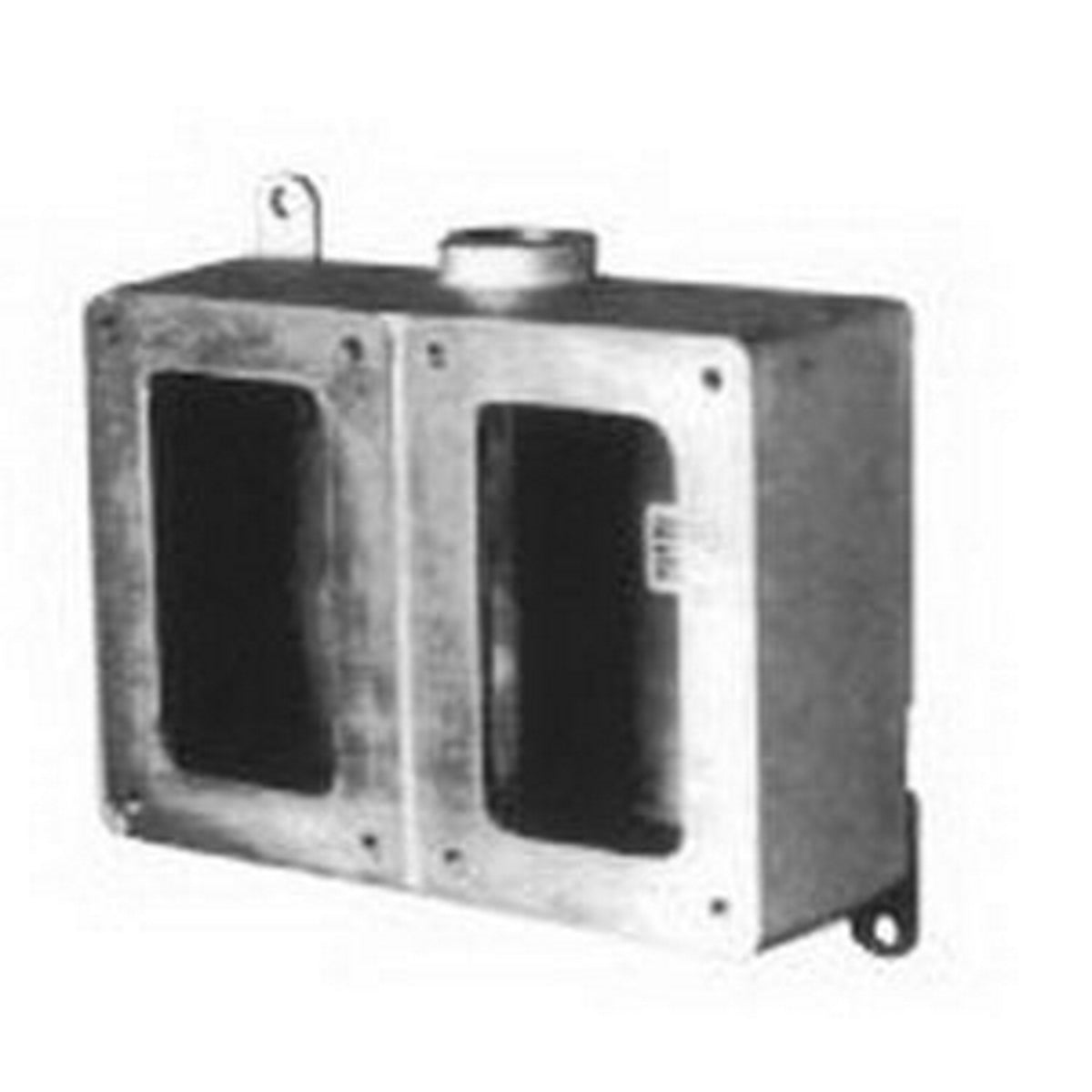

The APPLETON ECS175 mounting box is a 1-gang box made from cast copper-free aluminum with a 3/4 IN hub. It is designed for use with ECS series devices. The mounting box features accurately tapped, tapered hubs for tight, rigid joints and ground continuity. It is suitable for various applications.

• Corrosion resistant captive stainless steel hex head bolts hold cover to body
• Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
• Complete with 1 close-up plug

Product Highlights

The APPLETON ECS175 mounting box is a durable and reliable solution for electrical installations, offering corrosion resistance and secure connections.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ECS175
• Country of Origin: CA

Technical Specifications

• Catalog Number: ECS175
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Canada
• Made in USA: No
• Application: For Use With ECS Series Devices
• Special Features: Corrosion resistant captive stainless steel hex head bolts hold cover to body; Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
• Standard: CSA Certified; Class I, Division 1 And 2, Groups B, C, D; Zone 1 and 2; Class II, Division 1 And 2, Groups E, F, G; Class III
• UPC: 781381313322
• GTIN: 00781381313322
• Item Type: 1-Gang Mounting Box
• Size: 3/4 in
• Material: Cast Copperfree (4/10 Of 1 PCT Maximum) Aluminum
• Gangs: 1
• NEMA Rating: NEMA 3/3R/7BCD/9FG
• Number Of Outlet: 1
• Height: 3.90 in
• Length: 7.70 in
• Width: 4.90 in
• Series: ECS
