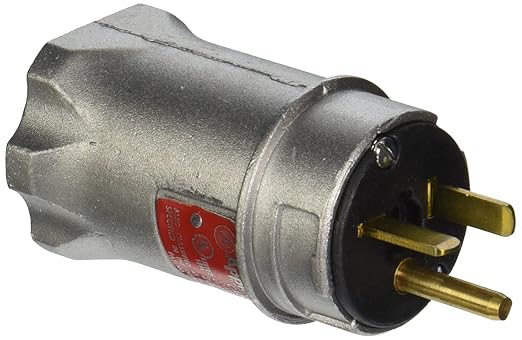

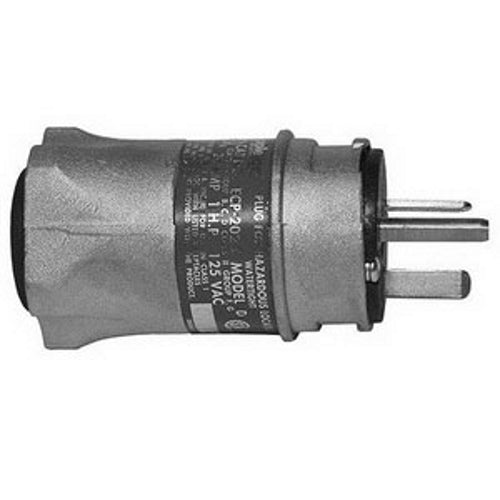

Appleton ECP-20232 U-Line Interchanger Plug 250 VAC 20 A

Product Description

The APPLETON ECP-20232 is a U-Line Interchanger straight blade plug. This plug is rated for 250 VAC and 20 A, with 3 poles and 2 wires. It is suitable for use in refineries, petrochemical plants, and other areas where ignitable gases are present. The plug fits standard non-explosionproof receptacles and U-Line explosionproof receptacles.

• Fits any standard non-explosionproof receptacle as well as U-Line explosionproof receptacles
• Explosionproof, dust-ignitionproof
• Unique blade-type, brass contacts exert constant pressure along entire contact surface and provide superior electrical contact

Product Highlights

The APPLETON ECP-20232 U-Line Interchanger plug ensures reliable power in hazardous locations. Its robust design and explosionproof features make it ideal for industrial environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: ECP-20232
• Country of Origin: MX

Technical Specifications

• Brand: Appleton
• MPN: ECP-20232
• Product Series: U-Line
• Family Series: Appleton Plugs & Receptacles, U-Line Series
• Current Rating: 20 A
• Number of Poles: 3
• Number of Wires: 2
• Voltage: 250 VAC
• Connection Type: Plug
• GFCI: No
• NEMA Configuration: 6-20P
• Color: Gray
• Watertight: No
• Isolated Ground: No
• Illuminated: No
• Approvals: CSA, UL
• Comments: Explosion Proof
• Manufacturer: Appleton
• Application: Fits Any Standard Non-Explosionproof Receptacle As Well As U-Line Explosionproof Receptacles
• ARRA Compliant: N
• Buy American Compliant: N
• Catalog Number: ECP20232
• Cord Diameter: 0.538 to 0.639 in
• Country of Origin: MX
• EU RoHS Indicator: C
• Material: Copper Free Aluminum
• NEMA Rating: NEMA 7BCD/9G
• Standard: Class I, Division 1 And 2, Groups B, C, D; Class II, Division 1 And 2, Group G and Coal Dust; Class III
• Standards: RoHS CompliantCSA CertifiedUL Listed for Class I, Div 1 and 2, Groups B, C, D, Class II, Div 1 and 2, Group G and Coal Dust, Class III
• Sub Brand: U-Line
• Type: ECP Standard Plug
• UNSPSC: 39121402
• UPC 11: 78138110587
• UPC 12: 781381105873
• Amperage Rating: 20 A
• Voltage Rating: 250 VAC
