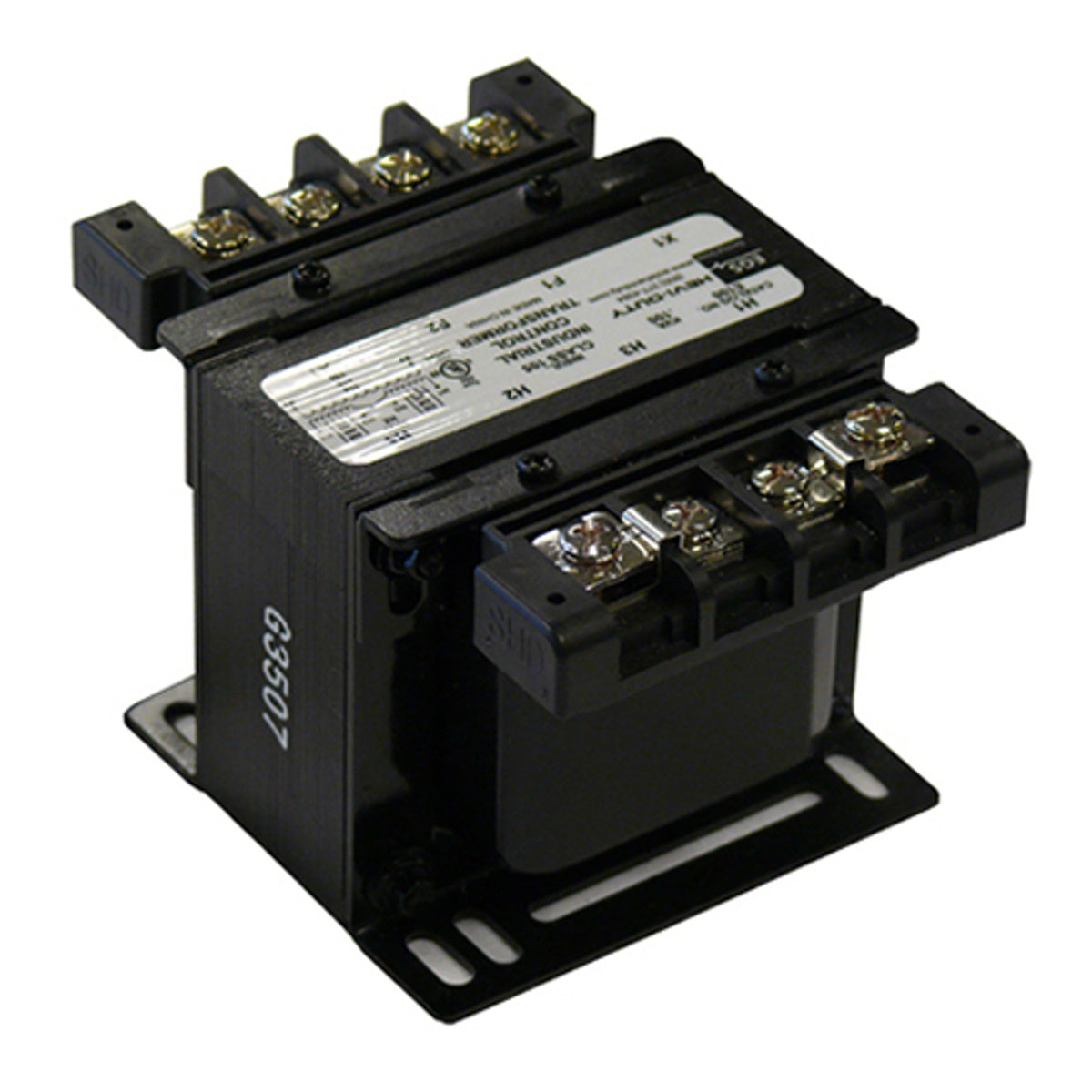

Appleton E500JL Control Transformer 208/240/277 VAC - 120/24 VAC 500 VA Replacement

Product Description

The APPLETON E500JL is an encapsulated control transformer operating at 208/240/277 VAC to 120/24 VAC with a 500 VA rating and 60 Hz frequency. It features an open enclosure and copper winding. This transformer includes a secondary fuse holder and is designed for surface mounting. It is part of the SBE series.

• Operates at 208/240/277 VAC to 120/24 VAC
• Features a 500 VA rating and 60 Hz frequency
• Includes a secondary fuse holder

Product Highlights

Encapsulated control transformer with open enclosure, copper winding, and secondary fuse holder for control circuit applications.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: E500JL

Technical Specifications

• Brand: Appleton Emerson
• Number of Phases: 1 Phase
• Depth: 5-3/4 in
• Insulation Temperature: 105 deg C
• Transformer Style: Encapsulated
• Winding: Copper
• Voltage: 208/240/277 VAC - 120/24 VAC
• Type: Control Transformer
• Enclosure Type: Open
• VA Rating: 500 VA
• Secondary Voltage: 120/24 VAC
• Width: 4-1/2 in
• Height: 3.89 in
• Mounting Type: Surface
• Includes: Secondary Fuse Holder
• Series: SBE
• Frequency Band: 60 Hz
• Primary Voltage: 208/240/277 VAC
