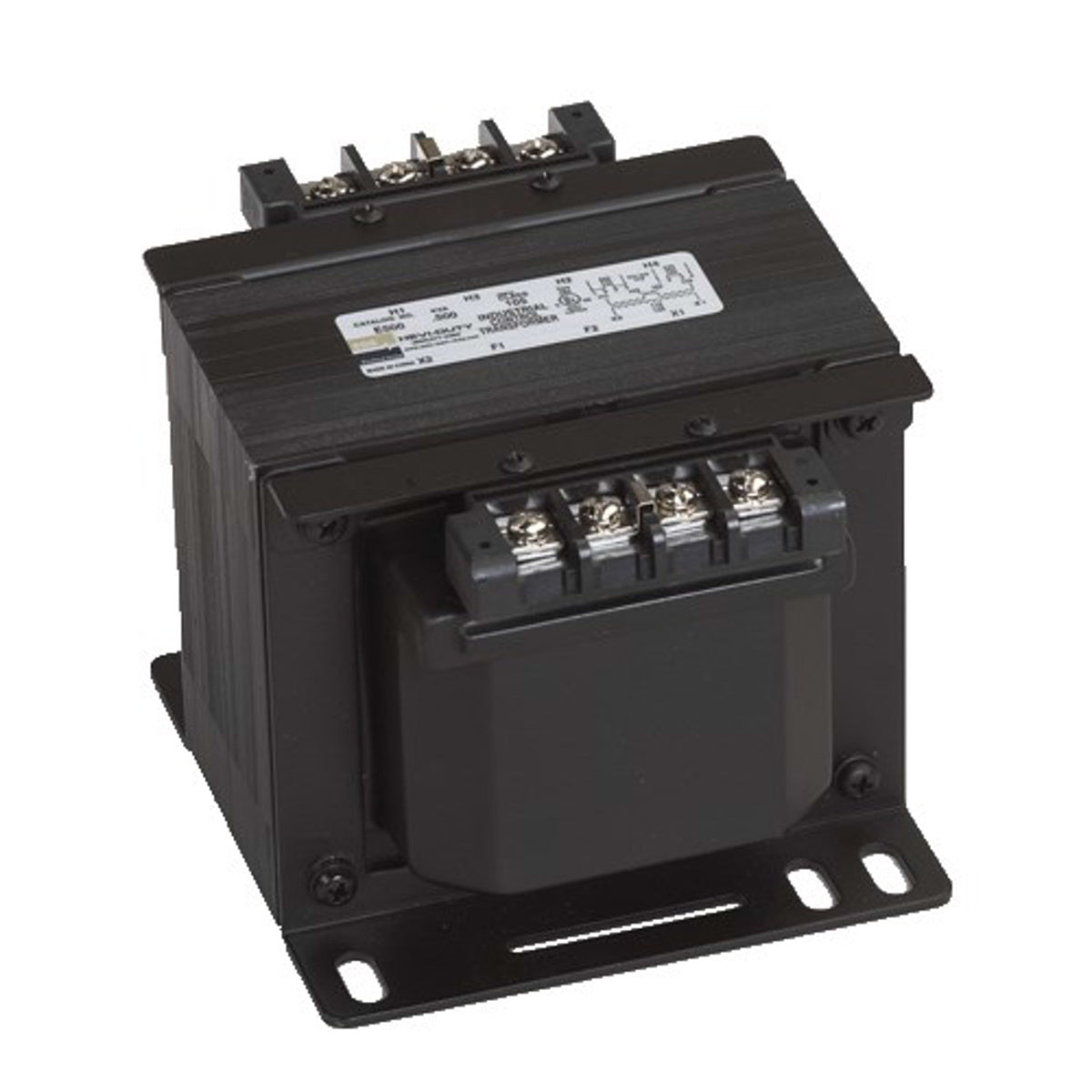

Appleton E500 Control Transformer 500 VA

Product Description

The APPLETON E500 is an encapsulated control transformer operating at 240 x 480 VAC to 120 VAC, with a 500 VA rating and open enclosure. It is designed for surface mounting and suitable for various control circuit applications. Operates at 50/60 Hz.

• Encapsulated transformer style
• Copper winding for efficient performance
• Suitable for surface mounting

Product Highlights

The APPLETON E500 is a reliable control transformer with a 500 VA rating, designed for efficient voltage conversion in industrial environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: E500

Technical Specifications

• Brand: Appleton Emerson
• Number of Phases: 1 Phase
• Depth: 5-3/4 in
• Insulation Temperature: 105 deg C
• Transformer Style: Encapsulated
• Winding: Copper
• Voltage: 240 x 480 VAC - 120 VAC
• Type: Control Transformer
• Enclosure Type: Open
• VA Rating: 500 VA
• Secondary Voltage: 120 VAC
• Width: 5-1/4 in
• Height: 4.53 in
• Mounting Type: Surface
• Series: SBE
• Frequency Band: 50/60 Hz
• Primary Voltage: 240 x 480 VAC
