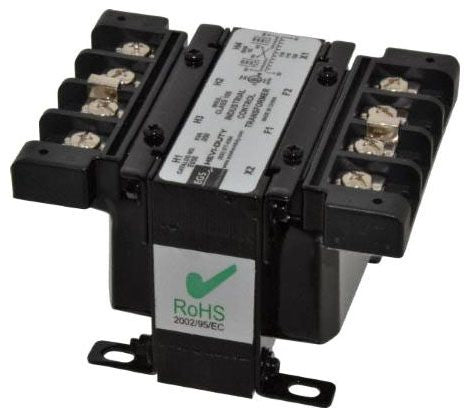

Appleton E050JL Control Transformer 0.05 Kva

Product Description

The APPLETON E050JL is a heavy-duty control transformer rated at 0.05 KVA, designed to step down line voltage to a lower control-circuit voltage for use in industrial and commercial electrical systems. Control transformers of this type supply stable, isolated power to relays, contactors, solenoids, and other low-voltage control devices. The E050JL is built to handle the high inrush current demands common in motor-starter and control-panel applications, making it a reliable choice for licensed electricians and industrial maintenance technicians working on control-circuit upgrades or replacements.

This transformer is suited for use in commercial and light industrial control panels, motor-control centers, and equipment enclosures where a dedicated low-voltage control supply is required. It is commonly installed as an OEM-style replacement or new-installation component in HVAC control panels, machine control systems, and switchgear assemblies. Its compact footprint allows installation in space-limited enclosures without compromising accessibility.

Key Features

• 0.05 KVA rated capacity for low-load control-circuit applications
• Heavy-duty construction suited for high inrush current environments
• Compact dimensions support installation in tight panel spaces
• Designed for use with relays, contactors, solenoids, and control devices
• UPC-verified product identification for procurement and inventory accuracy

Compatibility

Designed as an OEM-style replacement or new-installation control transformer for commercial and industrial low-voltage control-circuit applications requiring a 0.05 KVA transformer.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize and lock out the panel before mounting or wiring the transformer. Verify that primary and secondary voltage ratings match the existing control circuit before connecting. Do not exceed the rated KVA load on the secondary winding.

Technical Specifications

• Capacity: 0.05 KVA
• Length: 8.9 inches
• Width: 4.5 inches
• Height: 5.1 inches
• Weight: 2.8 pounds
• UPC: 78347253310

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: E050JL
