Appleton CLB-150MN Clamp Back 1-1/2 in

Product Description

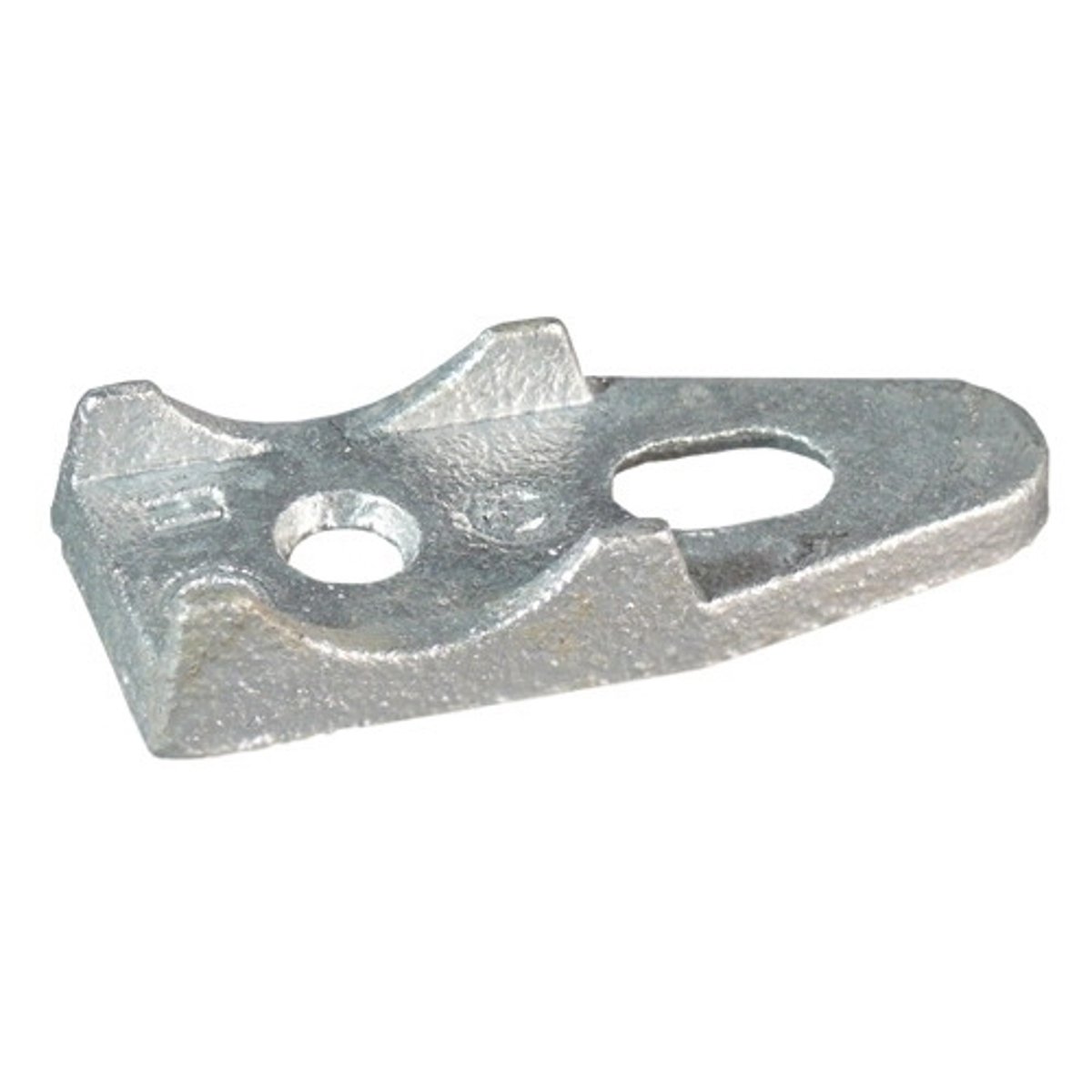

The APPLETON CLB-150MN clamp back is 1-1/2 IN in size and made of malleable iron with a hot-dipped galvanized finish. Measuring 3.94 IN in length, 1.56 IN in width and 0.81 IN in height with a bolt diameter of 0.38 IN. It is designed to support runs of RMC and IM.

• Size: 1-1/2 IN
• Material: Malleable Iron
• Finish: Hot Dipped Galvanized
• For Used To Support Runs Of RMC, IM

Product Highlights

The APPLETON clamp back provides spacing from mounting surface when used with pipe clamps and is suitable for use with IMC/EMT/Rigid Metal Conduit.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CLB-150MN
• Country of Origin: China

Technical Specifications

• Size: 1-1/2 IN
• Type: Clamp Back
• Brand: Appleton
• Finish: Hot-Dip Galvanize
• Material: Malleable Iron
• Trade Size: 1-1/2 Inch
• Product UPC: 78138187588
• 12-Digit UPC: 781381875882
• Applications: For Used To Support Runs Of RMC, IMC And EMT
• Catalog Number: CLB-150MN
• Manufacturer: Appleton Electric
• Country of Origin: China
• Made in USA: No
• Special Features: provide spacing from mounting surface when used with pipe clamps
• Standard: CSA C22.2 No. 18.4; CSA 065178
• UPC: 781381875882
• GTIN: 00781381875882
• Item Type: Clamp Back
• Length: 3.94 Inch
• Width: 1.56 Inch
• Approval: CSA C22.2
• Used On: IMC/Rigid Conduit
• Depth: 0.81 Inch
• Mounting Type: Surface
• Suitable For Use With: IMC/EMT/Rigid Metal Conduit
• Standard & Approvals: CSA 065178, C22.2 No 18.4 Certified
• Diameter: 1 1/2 in
