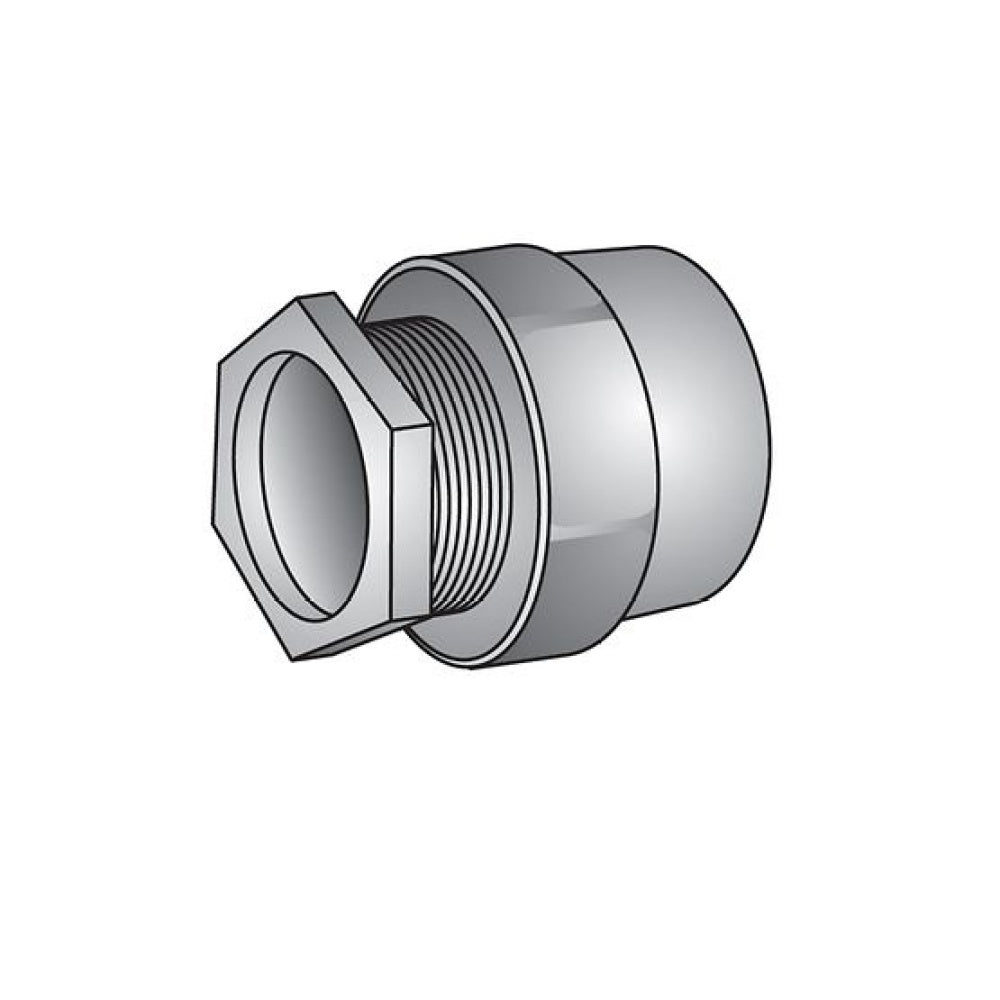

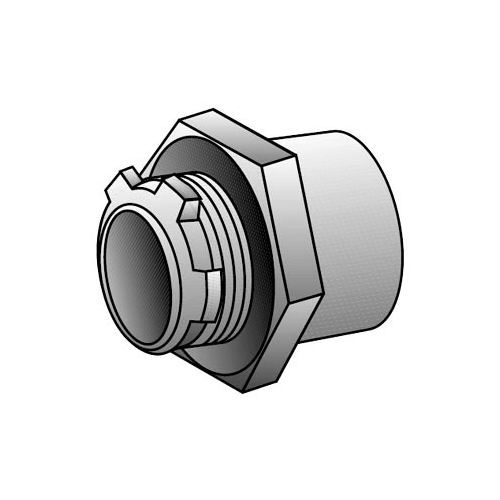

Appleton CHM-100 1 in Conduit Hub RMC/IMC

Product Description

The APPLETON CHM-100 is a 1 IN conduit hub RMC/IMC. It features a female bushed nipple type and female thread for rigid conduit and IMC. The conduit hub takes less space and is suitable for use with service entrance conduit. The raintight conduit hubs can be used with RMC and IMC.

• Female bushed nipple type
• Female thread for rigid conduit and IMC
• Takes less space

Product Highlights

The APPLETON CHM-100 is a 1 IN conduit hub RMC/IMC with a female bushed nipple type.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CHM-100
• Country of Origin: Mexico

Technical Specifications

• Component: Conduit Hub
• Manufacturer: Appleton
• TS PIK: 21332289
• Country of Origin: Mexico
• Constructional Feature: Dusttight, Raintight, Watertight
• Material: Zinc Plated Malleable Iron Body, Steel Locknut, Neoprene O-ring
• Series: CHM
• Size: 2 Inch Dia x 1-3/4 Inch L
• Trade Size: 1
• Type: Male Threaded
• Used On: Rigid Conduit/IMC
• Approval: UL 514B, CSA C22.2
• Manufacturer Part Number: CHM100
• Product Series: CHM
• Family Series: Appleton Fittings, CHM Series
• Description: 1 IN COND HUB RMC/IMC
• Conduit/Cable Type: IMC (Intermediate Metallic Conduit), RMC (Rigid Metallic Conduit)
• Connection Type: Screw-In
• Angle: Straight
• Hub Type: Male NPT Thread
• Grounding: No
• Insulated Throat: No
• Jacketed: No
• Composition: Metallic
• Protection Rating: Rain Tight
• NEMA Rating: NEMA FB1
• Hazardous Location: No
• Approvals: CSA, UL
