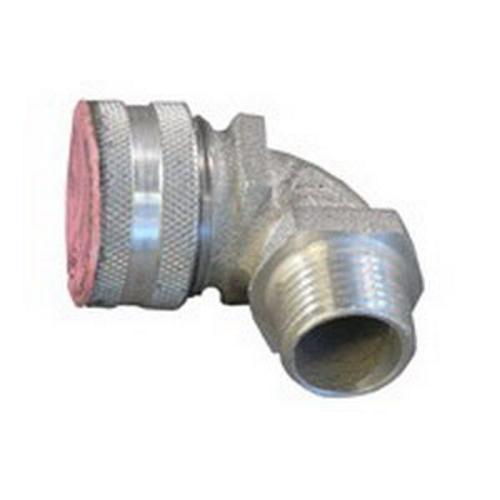

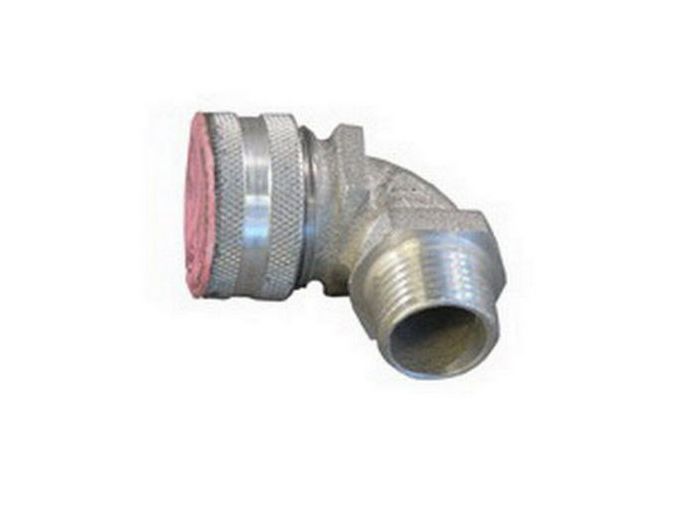

Appleton CG90-87100 1 inches Aluminum 90D Cord Connector

Product Description

The Appleton CG90-87100 is a 1" aluminum 90D cord connector. It provides a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. Ideal for use in wet or dry locations, sealing electrical connections against dust, dirt, oil, and moisture.

• Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range.
• Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief.
• Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution.

Product Highlights

This aluminum cord connector offers liquidtight and strain relief for various cables, suitable for harsh environments.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG90-87100

Technical Specifications

• Angle: 90 Degrees
• Cable Openings: 7/8 to 1
• Connection Type: Thread
• Material: Cast Aluminum
• Trade Size: 1
• Brand: Appleton
• Manufacturer: Emerson Electric
• Manufacturer Part Number: CG90-87100
• Product Series: CG
• Family Series: Appleton Cable Entries, CG Series
• Hub Size: 1 NPT
• Number of Cables: 1
• Cable Style: Round
• NEMA Rating: NEMA 3R
• Split Frame: No
• Cable Diameter Range: 0.88-1 "
• Type: Bushing Grip with Strain Relief
• Composition: Metallic
• Hazardous Location: No
• Approvals: CSA, UL
• Diameter: 1 in
• Diameter Range: 0.875 - 1.000 in
• Component: Cable Connector
