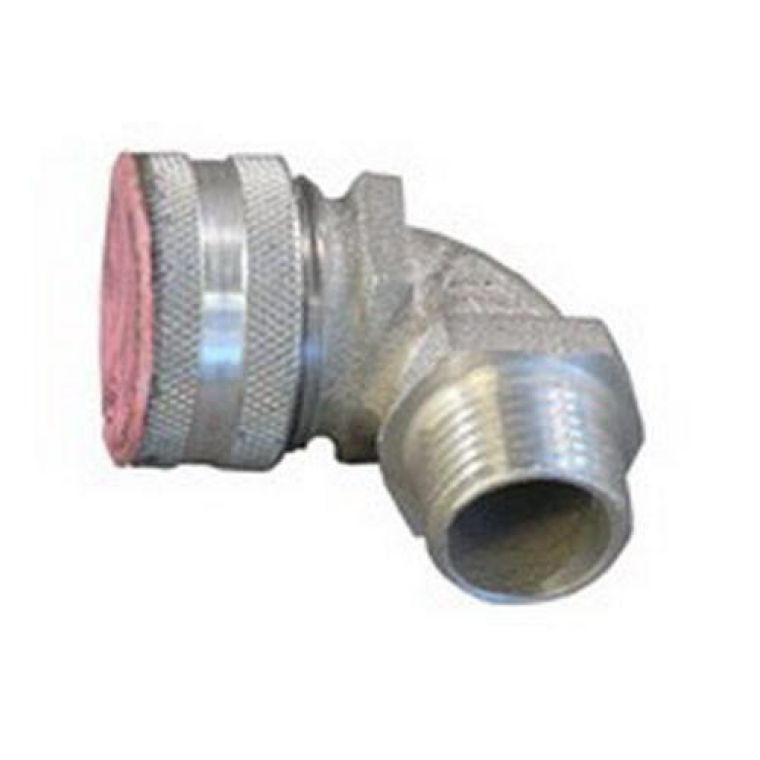

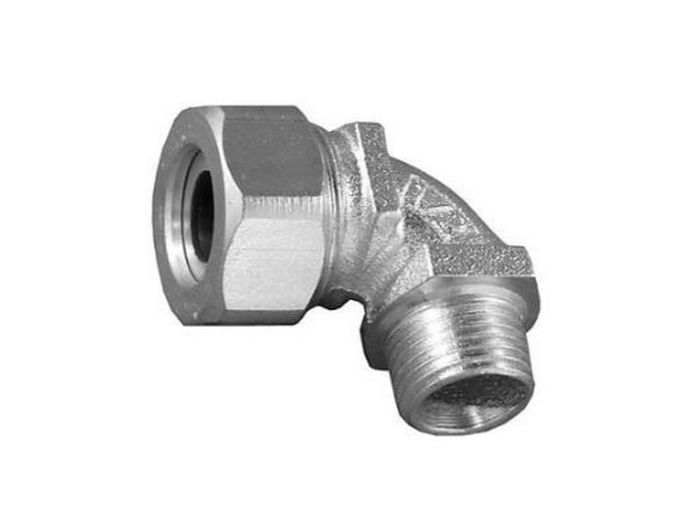

Appleton CG90-1838 3/8 Aluminum 90D Cord Connector

Brand: APPLETON
SKU: CG90-1838
Availability: In Stock

Ships same day if ordered by 12 pm
$41.72
$41.72
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The APPLETON CG90-1838 is a 3/8" aluminum 90D cord connector designed to terminate flexible cord into enclosures and junction boxes. It provides strain relief and a sealed entry point. Constructed from aluminum, it is suitable for use in hazardous locations where flammable gases, vapors, or combustible dusts may be present.

  • Provides strain relief
  • Offers a sealed entry point for the cord
  • Suitable for hazardous locations

Product Highlights

This aluminum 90-degree cord connector is ideal for providing a secure, liquidtight connection for flexible cords in demanding environments.

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: CG90-1838
  • Country of Origin: Mexico
Technical Specifications
Material
Aluminum
Diameter
3/8 in
Diameter Range
0.187 - 0.312 in
Type
Liquidtight Cable Connector
Pipe Size
3/8 in. Hub
Angle
90 Degree
Country of Origin
United States
Body Material
Aluminum
Brand
Appleton Electric
Cable Diameter
0.19" to 0.31"
Cable System
Flexible Cord
Connection Orientation
90 deg
Fitting Type
Connector
Hazard Rating
Dust-Ignitionproof / Explosionproof
Hazard Rating Specs
Class I, Division 1, Class I, Division 2, Class II, Division 1, Class III
Specifications Met
Class III, Class I, Div 2, Class II, Div 1, 2, CSA 065178 Certified, CSA C22.2 No. 18.3, UL 514B File No. E14817 Listed
Thread Size
3/8"
Thread Standard
NPT
Manufacturer Part Number
CG90-1838
Manufacturer
Appleton
Product Series
CG
Family Series
Appleton Cable Entries, CG Series
Description
90 DEG Liquidtight Strain Relief Connector, Size: 3/8 IN, Conductor Range: 3/16 - 5/16 IN, Material: Cast Aluminum, Color: Brown Label, Nema Rating: NEMA 3R, Connection: Threaded Hub, Standard: Class I, Division 2, Class II, Division 1
Hub Size
3/8 NPT
Number of Cables
1
Cable Style
Round
NEMA Rating
NEMA 3R
Split Frame
No
Cable Diameter Range
0.19-0.31 "
Composition
Metallic
Hazardous Location
No
Approvals
CSA, UL
