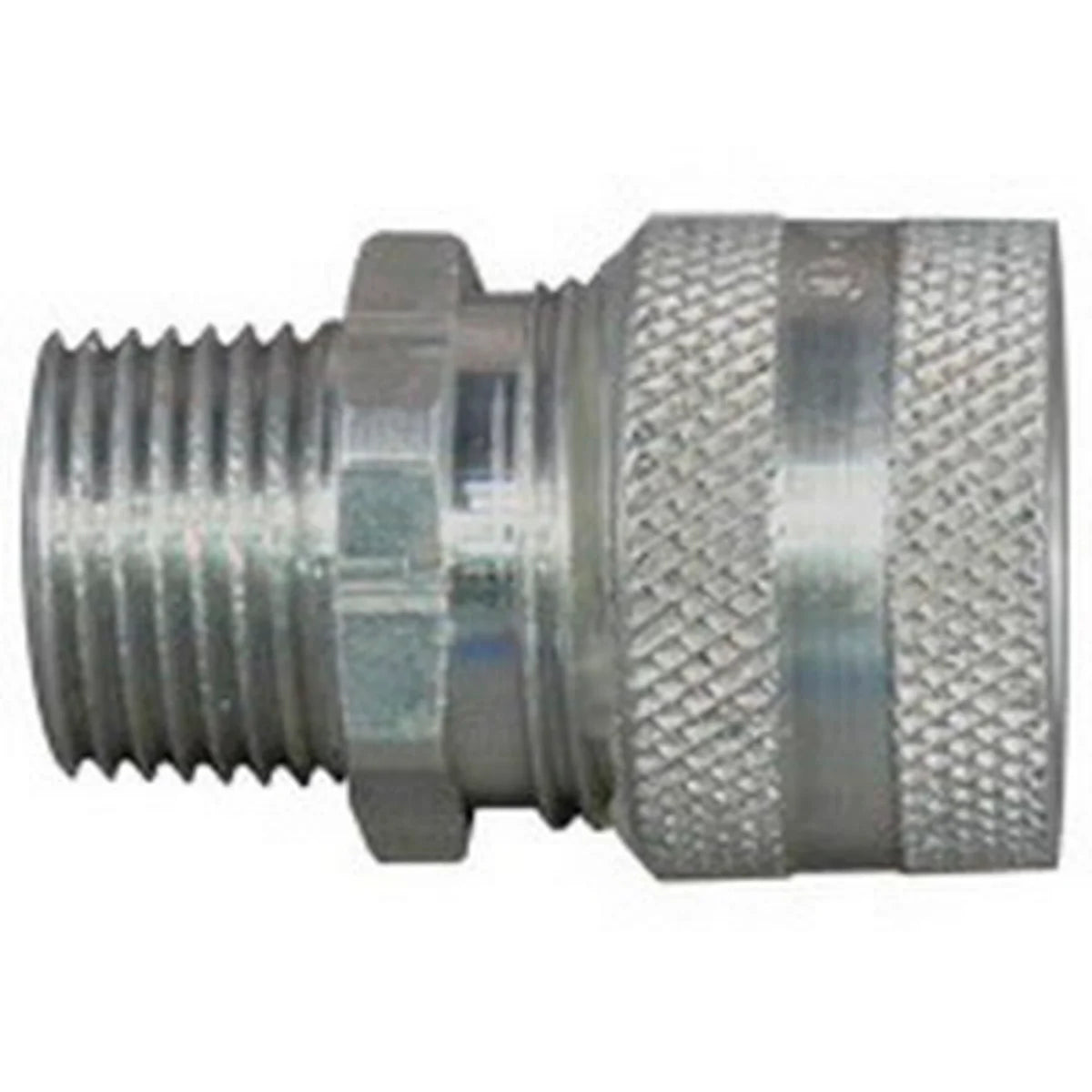

Appleton CG-87100 Strain Relief Straight Cord Connector 1 in

Product Description

The Appleton CG-87100 is a liquidtight strain relief cord connector designed for use with flexible type neoprene, hypalon, and PVC jacketed power or control cords and cables. This connector has a size of one inch and accommodates a conductor range of seven-eighths to one inch. It is made of aluminum with a threaded hub connection. The connector is NEMA rated for 3R and is suitable for both wet and dry locations, offering effective sealing against dust, dirt, oil, and moisture.

• Material: Aluminum
• Conductor Range: 7/8 - 1 in
• NEMA Rating: 3R

Product Highlights

This connector provides strain relief to protect internal wiring connections from external tension on cables. It includes a neoprene sealing grommet that grips the cable jacket securely. It is compliant with several standards including UL 514B and CSA C22.2 No. 18.3.

Product Information

Standard Information

• Catalog Number: CG-87100
• Brand: Appleton

Technical Specifications

• Application: Flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable
• Color: Red Label
• Connection: Threaded Hub
• Dimensions: 1-3/4 in height
• Country of Origin: Mexico
• Special Features: Neoprene sealing grommet, copper-free aluminum
• UPC: 781381191906
