Appleton CG-137125 liquidtight strain relief cord/cable connector 1-1/4 inches

Product Description

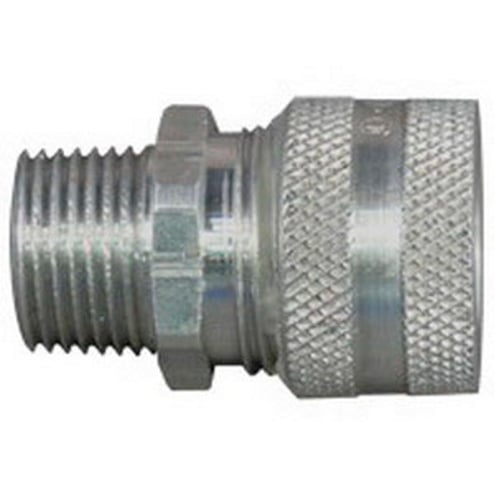

The APPLETON CG-137125 is a liquidtight strain relief cord and cable connector with a 1-1/4" threaded hub. It is designed for cables ranging from 1.375 to 1.5 inches. Constructed from aluminum with a yellow label, this straight connector provides a secure, liquidtight termination for flexible neoprene, hypalon, and PVC jacketed power or control cords and cables.

• 1-1/4 Threaded Hub
• Cable range: 1.375 to 1.5
• Made of Aluminum

Product Highlights

Provides a liquidtight and strain relief termination for flexible neoprene, hypalon, and PVC jacketed power or control cord and cable.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG-137125
• Country of Origin: MX

Technical Specifications

• Manufacturer: Appleton
• Part Number: CG-137125
• Application: For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable
• Color: Yellow Label
• Conductor Range: 1-3/8 - 1-1/2
• Connection: Threaded Hub
• Country of Origin: MX
• Finish: Natural
• Material: Aluminum
• NEMA_Rating: NEMA 3R
• Special Features: Color coded identification label clearly states the catalog number and minimum/maximum cable diameter range for which the connector is designed For particularly harsh applications, wire mesh strain reliefs may be used with cord and cable connectors Large aluminum connectors 1-1/2 in thru 4 in and all steel connectors are constructed with hex head cap Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord Silicone free Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion
• Standard: Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178
• Sub_Brand: Appleton
• Trade_Size: 1-1/4
• Type: Strain Relief
• Diameter: 1 1/4 in
• Diameter Range: 1.375 - 1.500 in
