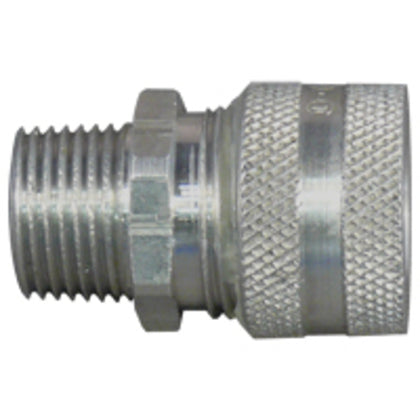

Appleton CG-0625 Straight Cord Connector 1/4 Aluminum

Product Description

The APPLETON CG-0625 straight cord connector provides a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. Ideal for use in wet or dry locations, they seal electrical connections against dust and dirt, oil, water or other atmosphere containing moisture.

• For flexible type neoprene, hypalon and PVC jacketed power or control cord and cable
• Color coded identification label clearly states the catalog number and minimum/maximum cable diameter range for which the connector is designed
• Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord

Product Highlights

This aluminum cord connector delivers liquidtight strain relief and dependable cable sealing for wet or dry locations. It secures flexible cords and cables while protecting against pullout and vibration.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CG-0625
• Country of Origin: MX

Technical Specifications

• Brand: Appleton
• Cable Openings: 0.06 to 0.156 in
• Color: Purple/Pink Label
• Connection Type: Threaded Hub
• Country of Origin: MX
• Finish: Natural
• Manufacturer Name: Emerson Electric
• Material: Aluminum
• Series: CG Series
• Trade Size: 1/4 in
• Type: Strain Relief
• Diameter Range: 0.060 - 0.156 in
• UNSPSC: 39121431
• Application: For flexible type neoprene, hypalon and PVC jacketed power or control cord and cable
