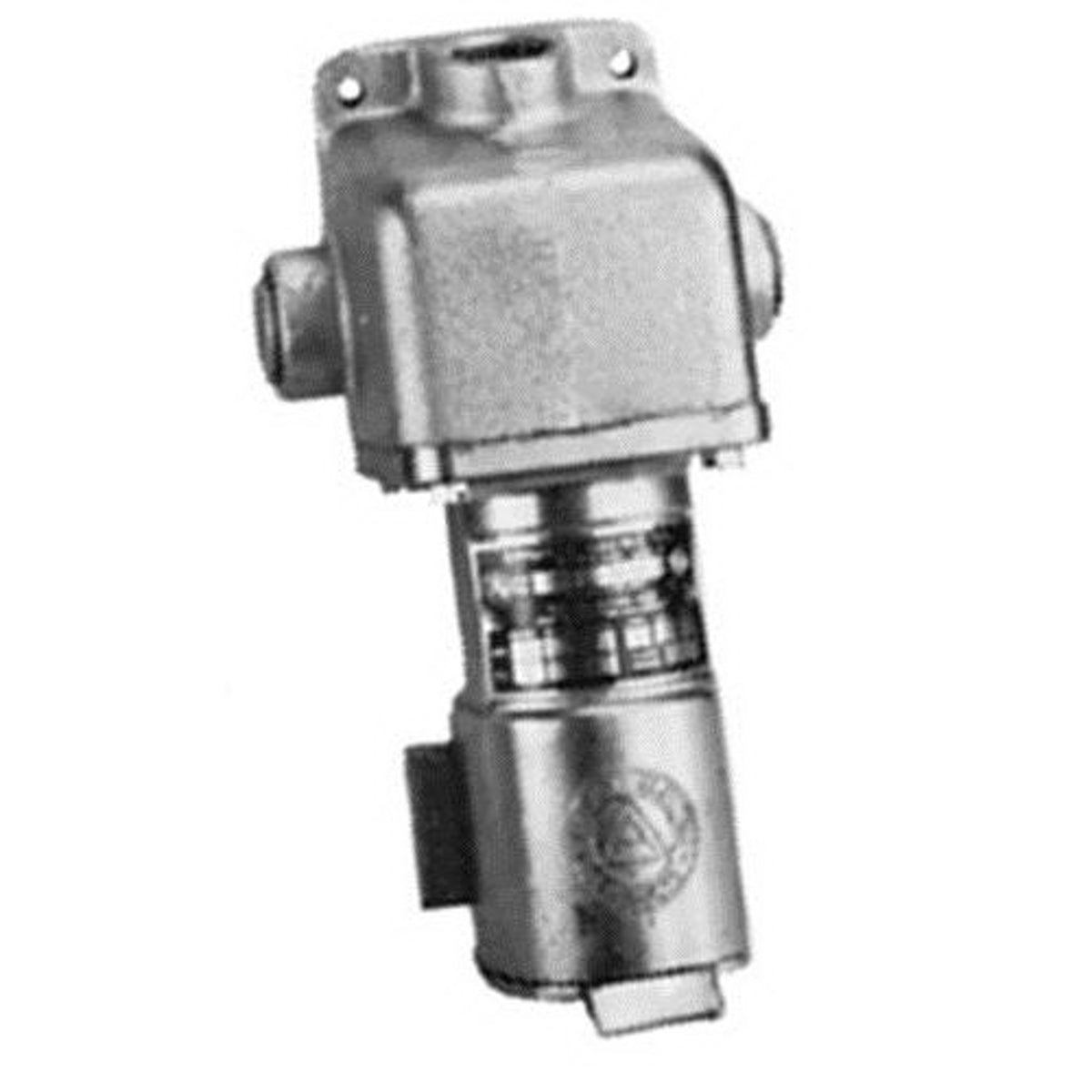

Appleton CES-3034 CES 3-Phase Feed Through Grounding Style 2

Product Description

The Appleton CES-3034 is a 30 Amp explosionproof receptacle designed for hazardous locations. It accommodates a voltage range of 125 to 250 VAC and provides reliable power connection for both stationary and portable equipment. This receptacle features a Slide-Lok design that ensures a delayed power connection to prevent accidental disconnection. The unit is factory sealed, built from durable copper-free aluminum and triple-coated malleable iron.

• Explosionproof protection for hazardous environments
• Slide-Lok feature to prevent power disconnect
• Constructed from copper-free aluminum for durability

Product Highlights

This receptacle is ideal for applications involving lighting systems, conveyors, motors, HVAC equipment, and pumps.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: CES-3034
• Voltage Rating: 125 to 250 VAC
• Amperage Rating: 30 A
• Horsepower: 3 hp
• Number of Poles: 4
• Number of Wires: 3
• Dimensions: 8.31 in H x 4.69 in W x 4.94 in D
• Material: Copper-free aluminum
• Connection Type: Pressure Wire Terminal
• Country of Origin: Mexico
