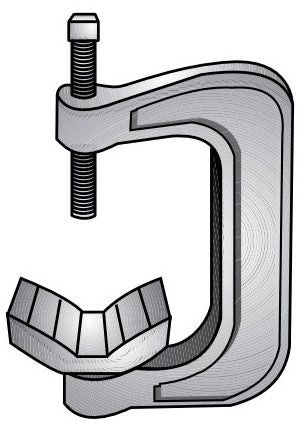

Appleton CBC-1 C Clamp 0.5 to 1.25 Inches Conduit Clamp

Product Description

The APPLETON CBC-1 is a C clamp designed for securing conduit and electrical raceways to structural steel, beam flanges, and similar mounting surfaces. Rated for conduit sizes ranging from 0.5 inches to 1.25 inches, this clamp provides a reliable mechanical connection without welding or drilling. At 0.41 pounds, it is a lightweight single-piece fastener suited for commercial and industrial electrical installations. Electricians and electrical contractors use this type of clamp when routing EMT, rigid conduit, or similar raceway systems across overhead steel structures.

The CBC-1 is appropriate for use in commercial buildings, industrial facilities, and infrastructure projects where conduit must be suspended from or attached to structural steel members. Its compact profile, measuring 6.9 inches by 5.1 inches by 0.4 inches, allows it to fit into tight framing bays and congested overhead spaces without interfering with adjacent conduit runs or structural members.

Key Features

• Accommodates conduit from 0.5 inches to 1.25 inches in diameter
• C clamp design attaches to beam flanges and structural steel without drilling
• Lightweight at 0.41 pounds for faster overhead installation
• Compact form factor: 6.9 x 5.1 x 0.4 inches
• Suitable for EMT, rigid metal conduit, and similar raceway types

Compatibility

Designed as an OEM-style conduit mounting clamp for use with standard 0.5 inch to 1.25 inch conduit and raceway systems in commercial and industrial electrical applications.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC requirements for conduit support spacing and securing methods. De-energize all circuits in the work area before positioning or tightening clamps on conduit that is already in service. Standard hand tools are sufficient for assembly. Verify that the beam flange thickness and width fall within the clamp manufacturer tolerances before tightening to ensure a secure, non-slip hold.

Technical Specifications

• Conduit Size Range: 0.5 to 1.25 inches
• Weight: 0.41 pounds
• Length: 6.9 inches
• Width: 5.1 inches
• Height: 0.4 inches
• UPC: 78312608255

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: CBC-1
