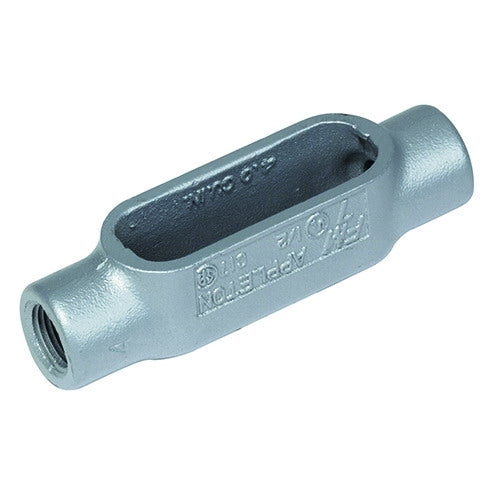

Appleton C77 Type C Conduit Outlet Body 2-1/2 Inch Form 7

Brand: APPLETON
SKU: C77
Availability: Out Of Stock
$164.94
$164.94
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Appleton C77 Type C Conduit Outlet Body with a 2-1/2 inch hub is designed for rigid/IMC conduit. This Form 7 conduit outlet body features a side access opening and a straight hub location with 2 hubs. It is made of zinc electroplated/chromate/epoxy powder coated gray iron.

  • Conduit Outlet Body
  • Access Opening Side
  • Threaded Installation

Product Highlights

This Appleton conduit body connects and changes the direction of conduit runs, allowing for branch run connections. It serves as a pulling fitting and permits access to conductors for splicing and maintenance.

Product Information

Standard Information

  • Brand: APPLETON
  • Manufacturer Part Number: C77
  • Country of Origin: MX
Technical Specifications
Access Opening Side
Side
Configuration
C
Hub Location
Straight
Number of Hubs
2
Hub Size
2-1/2 Inch
Installation
Threaded
Material
Iron Alloy
Form Type
Form 7
Used On
Rigid/IMC Conduit
Applicable Standard
NEMA FB-1
Capacity
102 Cu Inch
Finish
Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
Application
For Rigid Steel/Aluminum and IMC Conduit
Connection Type
Tapered FNPT
Enclosure
NEMA FB-1
Mounting Type
Surface
Type
Type C
Tc Connection
Tapered Female Threaded
Brand
Appleton
Sub Brand
UNILETS
Height
3.63 Inch
Length
12 Inch
Width
4.25 in
Family / Style
Form 7
Diameter
2 1/2 in
MPN
C77
UPC
781381514514
Country of Origin
United States
Standard
UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
Special Features
Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs
