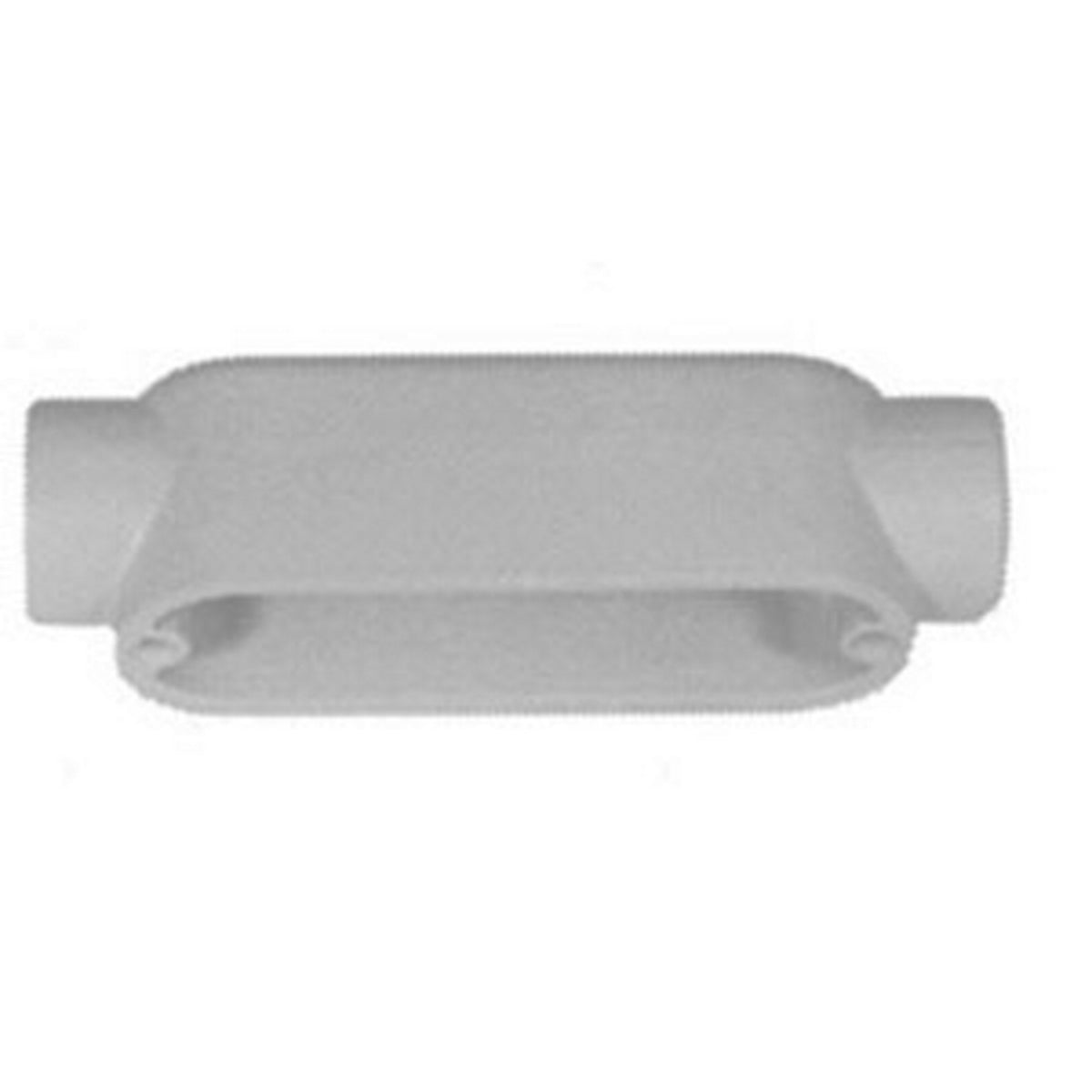

Appleton C200-A 2 Form 85 Unilet Conduit Body

Product Description

The Appleton C200-A is a type C conduit outlet body designed specifically for use with rigid aluminum and steel conduit. This model includes a hub size of two inches and is made from pressure cast aluminum. The epoxy powder coat finish enhances its durability and resistance to corrosion. This product is ideal for applications requiring electrical conduit fittings, such as bending, splicing, or changing the direction of conduit runs.

• Material: Pressure cast aluminum
• Hub Size: 2 inches
• Standards: UL 514A, UL 514B, CSA C22.2 No. 18.3

Product Highlights

Designed for optimal efficiency and compliance with electrical standards, the C200-A allows for easy installation and accessibility in conduit systems.

Product Information

Standard Information

• Catalog Number: C200-A
• Manufacturer: Appleton Electric

Technical Specifications

• Form: 85
• Connection: Tapered female threaded
• Finish: Epoxy powder coat
• Dimensions: Length: 10.81 inches, Width: 3.13 inches, Height: 3.44 inches
• Application: For use with rigid steel, rigid aluminum conduit, IMC and EMT
• Weight: 2.1 lbs
• Country of Origin: India
