Appleton BUC-75 Threaded Capped Bushing 3/4 Inch Replacement MPN

Product Description

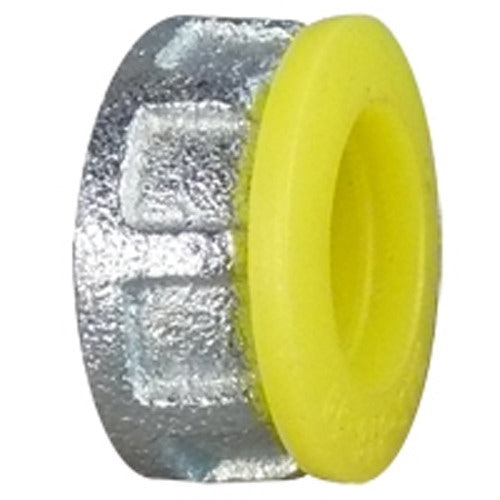

The Appleton BUC-75 is a threaded capped bushing made from malleable iron with a polyethylene cap. It has a size of three-fourths of an inch and is zinc electroplated for durability. This product is designed for use with a locknut to terminate rigid metal conduit or intermediate metal conduit to a box or enclosure.

• Threaded connection for secure installation
• UL listed for safety compliance
• Meets CSA and NEMA standards

Product Highlights

The Appleton BUC-75 provides a smooth pulling surface and non-grounding features. It is suitable for terminating rigid metal conduit in various electrical installations.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• Catalog Number: BUC-75

Technical Specifications

• Material: Malleable Iron, Polyethylene Cap
• Finish: Zinc Electroplate
• Trade Size: 3/4 Inch
• Diameter: 1.25 Inch
• Height: 0.44 Inch
• Weight: 0.060 Pounds
• Application: For use with locknut to terminate rigid metal conduit or IMC
• Standards: UL 514B, CSA C22.2 No. 18.3, NEMA FB-1
