Appleton Buc-100 Capped Bushing 1 inches

Product Description

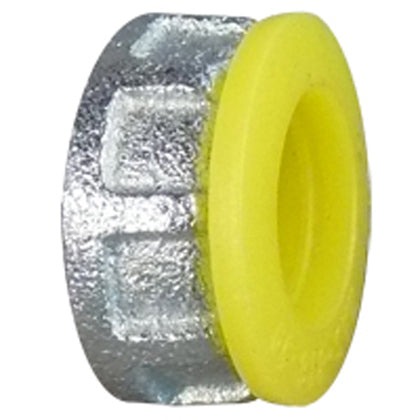

The APPLETON BUC-100 capped bushing is for use with rigid/IMC conduit. It terminates rigid metal conduit or IMC conduit to a box or enclosure. It provides a smooth pulling surface for wires. The bushing is made of malleable iron with a zinc electroplated finish and polyethylene cap.

• For Use With Rigid/IMC Conduit
• Provides capped smooth pulling surface, non-grounding
• Used with a locknut to terminate rigid metal conduit or IMC conduit to a box or enclosure

Product Highlights

The APPLETON capped bushing provides a smooth pulling surface for wires when terminating rigid or IMC conduit to an enclosure.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: BUC-100
• Country of Origin: US

Technical Specifications

• Material: Malleable Iron
• Diameter: 1 in
• Finish: Zinc Electroplated
• UNSPSC: 39121312
• Trade Size: 1 "
• Application: For use with a locknut to terminate rigid metal conduit or IMC conduit to a box or enclosure
• Dimensions: 1.56 in Dia x 0.5 in H
• Manufacturer Part Number: BUC-100
• Manufacturer: Appleton
• Product Series: Conduit Bushing
• Family Series: Appleton Bushings, Conduit Bushing Series
• Description: Capped Bushing, Size: 1 IN, Material: Malleable Iron, Polyethylene Cap, Finish: Zinc Electroplate, Connection: Threaded, Dimensions: 0.5 IN Height X 1.56 IN Diameter, Standard: UL 514B, E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1, For Use With
• Grounding: No
• Hazardous Location: No
• Insulation Material: Plastic
• Mounting: Threaded
• Composition: Iron
• Conduit Fitting: RMC (Rigid Metallic Conduit), IMC (Intermediate Metallic Conduit)
• Approvals: CSA, UL
• Comments: Listed for Ordinary Locations
• Conduit Fitting Type: Imc (Intermediate Metallic Conduit), Rmc (Rigid Metallic Conduit)
• Grounding Lug: No
• Hazardous Rated: No
• Insulator Material: Plastic
• Series: Conduit Bushing Series
• Trade Size (in): 1"
• Height (cm): 1.27
• Length (cm): 3.96
• Width (cm): 3.96
