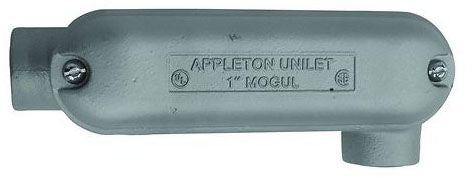

Appleton BUB400-A 4 MOGUL UNILET TYPE U

Product Description

The Appleton BUB400-A is a mogul Unilet Type UB NEC six by six conduit outlet body that includes an assembled cover and gasket. It has a hub size of four inches. This model has a length of thirty inches and eighty-eight hundredths, a width of five inches and sixty-three hundredths, and a height of ten inches and thirty-one hundredths. It is made from aluminum and finished with an epoxy powder coat. The connection type is tapered female threaded, complying with standards set by UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, and NEMA FB-1. It is suitable for use with rigid metal conduit and IMC.

• Hub size: Four inches
• Material: Aluminum
• Standards: UL 514B, CSA C22.2

Product Highlights

This conduit outlet body is designed for easy installation and reliable performance. It is ideal for connecting rigid metal conduit.

Product Information

Standard Information

• Brand: Appleton
• Manufacturer: Appleton Electric

Technical Specifications

• Catalog Number: BUB400-A
• Length: 30.88 inches
• Width: 5.63 inches
• Height: 10.31 inches
• Hub Size: 4 inches
• Material: Aluminum
• Finish: Epoxy Powder Coat
• Connection Type: Tapered Female Threaded
