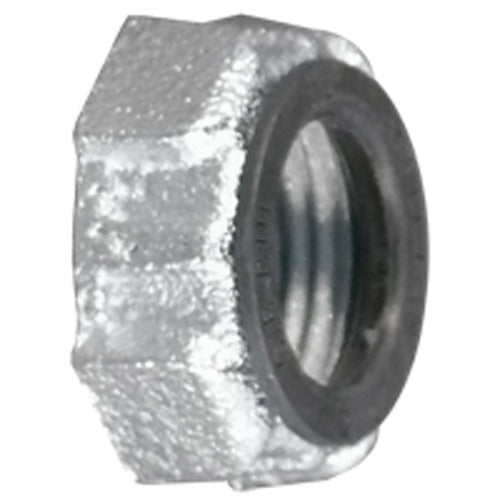

Appleton BU-50I Conduit Bushing 1/2 inches

Product Description

The APPLETON BU-50I is a 1/2" malleable insulated bushing. It is designed for use with rigid metal and IMC conduit. The bushing protects wires and cables at entry and exit points of threaded rigid conduit and IMC, providing a smooth pulling surface.

• For Use With Locknut To Terminate Rigid Metal Conduit Or IMC To A Box Or Enclosure
• Provides a smooth pulling surface
• ARRA Compliant

Product Highlights

The Appleton BU-50I is a 1/2" conduit bushing made of zinc electroplated malleable iron with insulated throat type and a temperature rating of 302 Deg F.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: BU-50I
• Country of Origin: MX

Technical Specifications

• Material: Malleable Iron
• Diameter: 1/2 in
• Insulation: Insulated
• Application: Commercial and Industrial
• ARRA Compliant: Y
• Buy American Compliant: N
• Catalog Number: BU50I
• Connection: Threaded
• Country of Origin: MX
• Dimensions: 1.19 in Dia x 0.5 in H
• EU RoHS Indicator: C
• Temperature Rating: 302 °F
• Type: Insulated Conduit Bushing
• UNSPSC: 39121312
• UPC 12: 781381161558
• Standard: UL 514B, E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1
• Standards: ARRA CompliantRoHS CompliantCSA 065178 C22.2 No. 18.3NEMA FB-1UL 514B E14814
• Size: 1/2 IN in
• Brand: Appleton
• Manufacturer: Appleton
• Finish: Zinc Electroplated
• Trade Size: 1/2 in
• Model: BU-50I
• Throat Type: Insulated
• Approval: UL 514B, CSA C22.2
• Used On: IMC/Rigid Metal Conduit
• Applicable Standard: NEC/CEC, NEMA FB-1
• Connection Type: Threaded
• Accessory Type: Conduit Couplings
