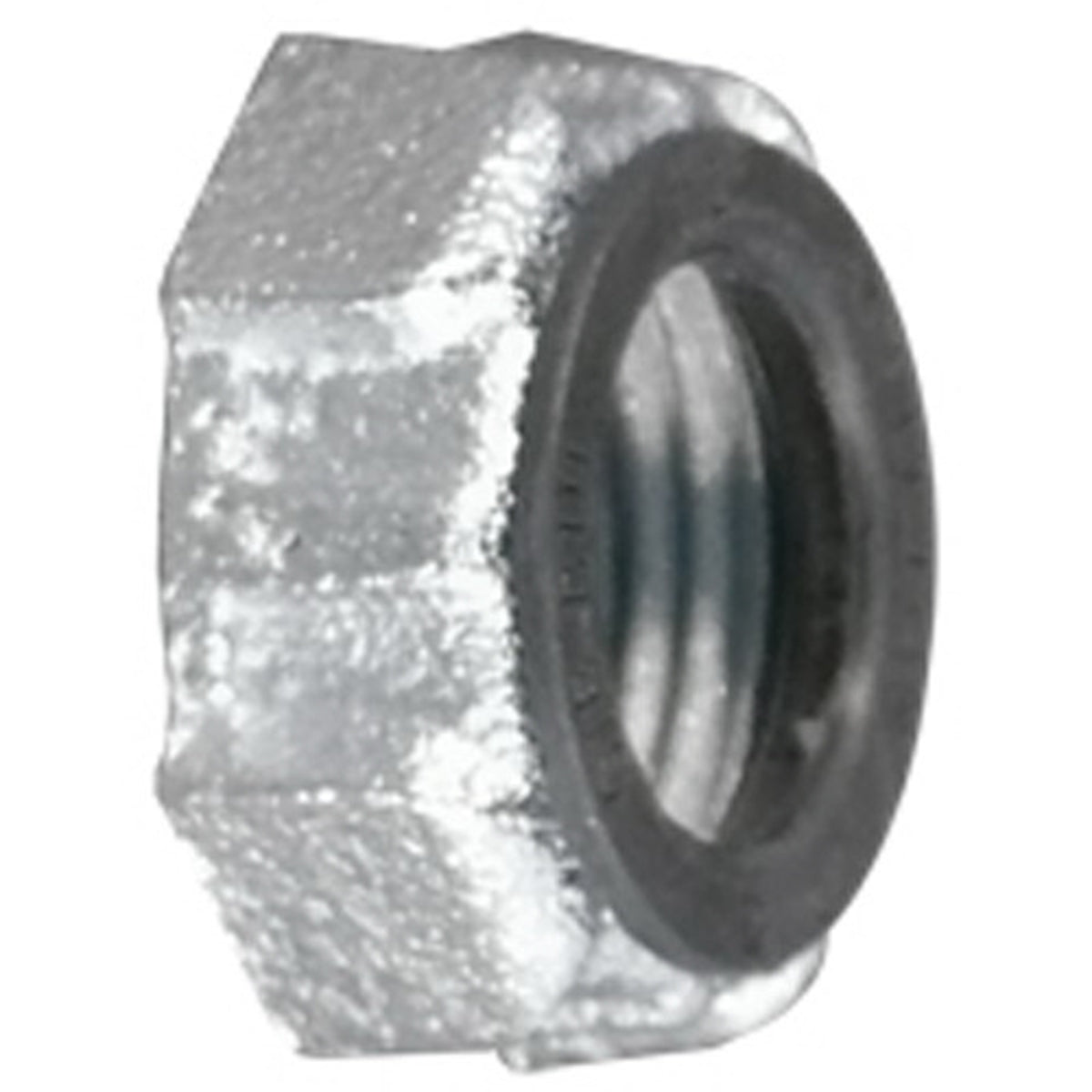

Appleton BU-250I 2-1/2 Malleable Insulated Bushing

Product Description

The Appleton BU-250I is a two and a half inch insulated conduit bushing made from malleable iron. It features a zinc electroplated finish and offers a threaded connection. The temperature rating of the bushing is one hundred fifty degrees Celsius. The dimensions are one inch in height and three point thirty-eight inches in diameter. This product complies with UL 514B and CSA C22.2 No. 18.3 standards.

• Size: 2-1/2 Inches
• Material: Malleable Iron
• Connection Type: Threaded

Product Highlights

This conduit bushing is designed for use with a locknut to terminate rigid metal conduit or IMC to a box or enclosure.

Product Information

Standard Information

• Brand: Appleton Electric
• Catalog Number: BU-250I

Technical Specifications

• Finish: Zinc Electroplate
• Material: Malleable Iron
• Trade Size: 2-1/2 Inch
• Temperature Rating: 150 Deg C
• Dimensions: Height - 1 Inch, Diameter - 3.38 Inches
• Connection: Threaded
• Standards: UL 514B, CSA C22.2 No. 18.3
