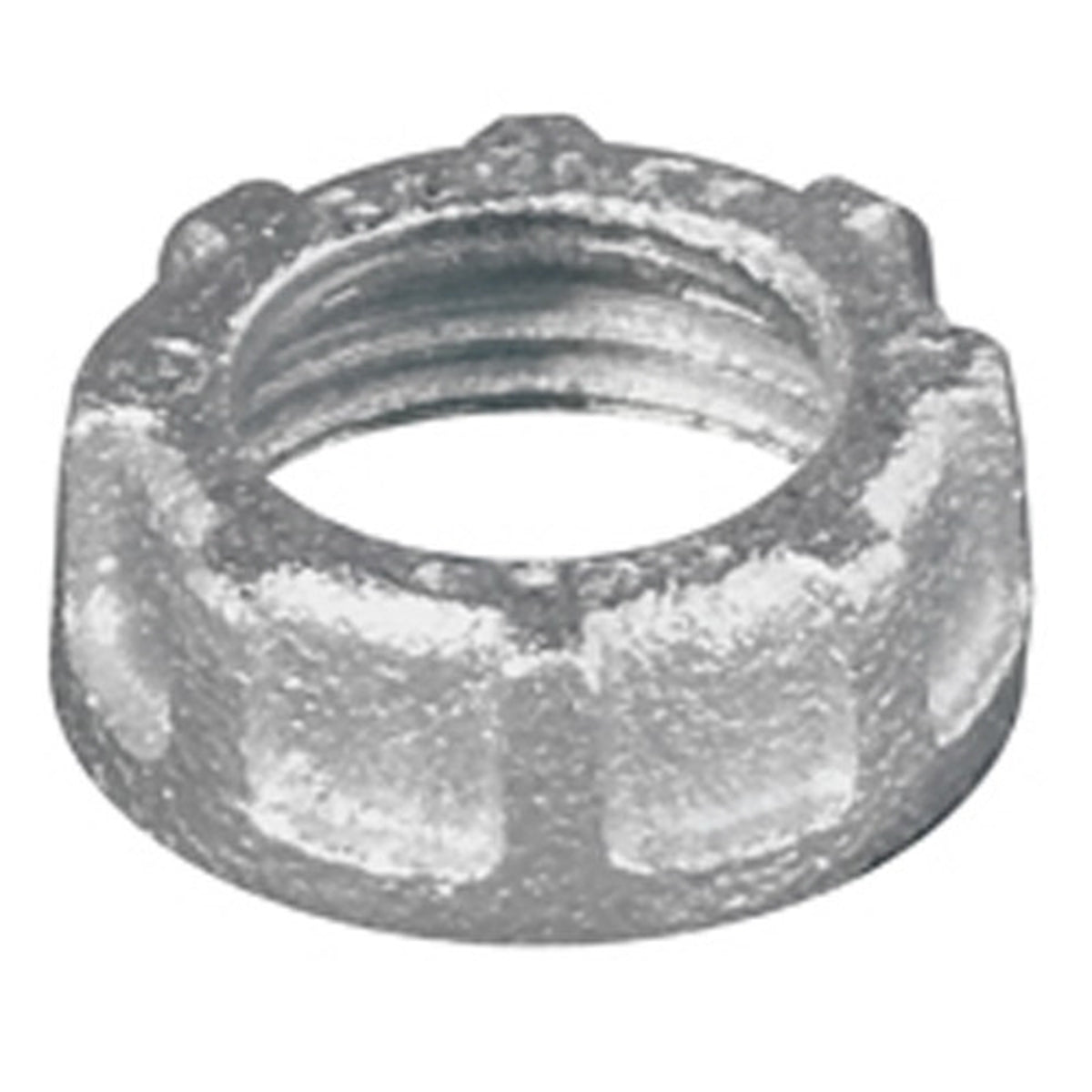

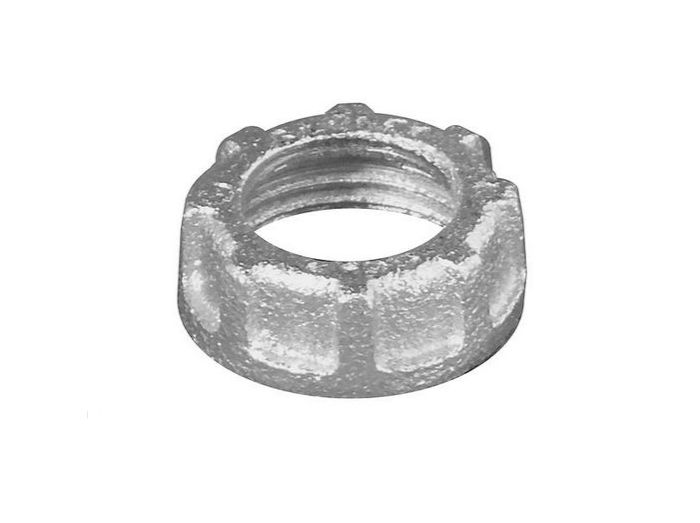

Appleton BU-250 Conduit Bushing 2-1/2 IN

Product Description

The APPLETON BU-250 is a 2-1/2 inch conduit bushing made of malleable iron with a zinc electroplate finish. It is designed for use with a locknut to terminate rigid metal conduit or IMC to a box or enclosure. The bushing provides a smooth pulling surface for wires, ensuring secure, code-compliant installs.

• Provides a smooth pulling surface
• Non-grounding
• For use with Rigid Metal and IMC Conduit

Product Highlights

This conduit bushing delivers a reliable connection for RMC or IMC to electrical boxes and enclosures, ideal for professional terminations.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: BU-250
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: BU-250
• Manufacturer: Appleton Electric
• Brand: Appleton
• Country of Origin: Mexico
• Made in USA: No
• Application: For Use With Locknut To Terminate Rigid Metal Conduit Or IMC To A Box Or Enclosure
• Connection: Threaded
• Finish: Zinc Electroplate
• Material: Malleable Iron
• Special Features: Provides a smooth pulling surface; Non-grounding
• Standard: UL 514B, E14814, CSA C22.2 No. 18.3, CSA 065178, NEMA FB-1
• UPC: 781381162104
• GTIN: 00781381162104
• Item Type: Conduit Bushing
• Size: 2-1/2
• Type: Threaded Female
• Trade Size: 2-1/2 Inch
• Diameter: 3.19 Inch
• Approval: UL 514B, CSA C22.2
• Used On: Rigid Conduit/IMC
• Applicable Standard: NEMA FB-1
• Insulation: Non-Insulated
• Manufacturer Part Number: BU-250
• Product Series: Conduit Bushing
• Family Series: Appleton Bushings, Conduit Bushing Series
• Grounding: No
• Hazardous Location: No
• Mounting: Threaded
• Composition: Iron
• Conduit Fitting: RMC (Rigid Metal Conduit), IMC (Intermediate Metal Conduit)
• Approvals: CSA, UL
• Comments: Listed for Ordinary Locations
