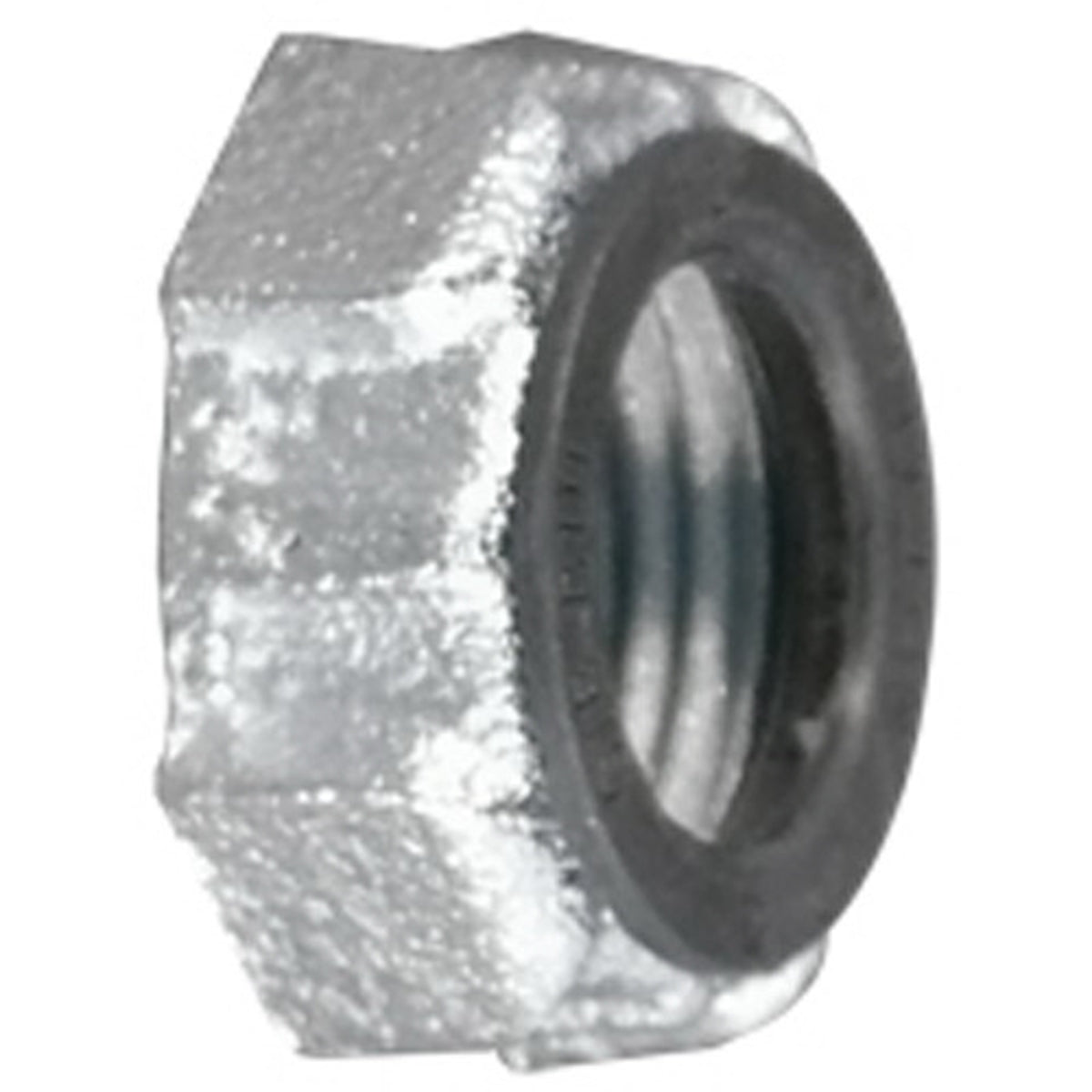

Appleton BU-200I 2 Inch Iron Insulated Rigid Conduit Bushings

Product Description

The Appleton Group BU-200I is a 2 inch insulated conduit bushing made from malleable iron. This product is designed for terminating rigid metal conduit or intermediate metal conduit to a box or enclosure. It features a zinc electroplated finish and a threaded connection type. The temperature rating of the bushing is one hundred fifty degrees Celsius. Its height measures point nine four inches, and it has a diameter of two point eight one inches.

• Trade size: 2 Inch
• Material: Malleable Iron
• Standard: UL 514B, CSA C22.2 No. 18.3

Product Highlights

This insulated conduit bushing provides a smooth pulling surface, ensuring easy installation and secure connections.

Product Information

Standard Information

• Catalog Number: BU-200I
• Manufacturer: Appleton Electric

Technical Specifications

• Connection: Threaded
• Finish: Zinc Electroplate
• Material: Malleable Iron
• Temperature Rating: 150 DEG C
• Height: 0.94 Inch
• Diameter: 2.81 Inch
• Weight: 0.29 Pounds
