Appleton BS75S Conduit Body Cover 3/4 in

Product Description

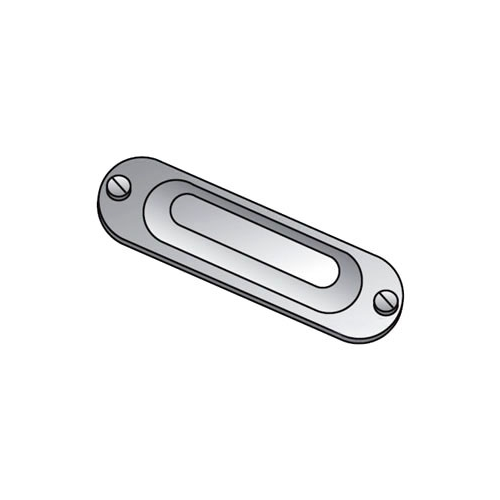

Appleton BS75S is a 3/4 inch domed conduit body cover designed for use with malleable iron conduit body openings. It is constructed of pre-galvanized stamped steel with stainless steel screws and uses a screw-in connection with tapered, accurately tapped threads for tight, rigid joints and ground continuity. The cover is suitable for wet locations when used with a gasket and carries UL and CSA certifications and multiple compliance listings.

• Domed top design with 3/4 in hub and screw-in connection for conduit body openings
• Pre-galvanized stamped steel construction with stainless steel screws and tapered tapped threads for tight joints and ground continuity
• UL (UL 514A) and CSA (C22.2 No. 18) certifications; ARRA, Buy American Act, and RoHS compliant; suitable for wet locations when used with a gasket

Product Highlights

3/4 in domed steel conduit body cover; screw-in mounting; UL and CSA certified; wet-location capable with gasket

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: BS75S
• Country of Origin: United States

Technical Specifications

• Brand: Appleton
• Manufacturer Part Number: BS75S
• Product Name: Conduit Body Cover
• Series: BS-S / Spec 5
• Family: BS-S
• Hub Size: 3/4 in
• Design: Domed top
• Material: Pre-galvanized stamped steel
• Screws: Stainless steel
• Connection Type: Screw / Screw-in mounting
• Threads: Tapered, accurately tapped threads
• Suitable For Use With: Malleable iron conduit body openings
• Application: For wet location applications when used with gasket
• Gasket Included: No
• Certifications: UL File Number E-18095; UL 514A; CSA LR-9795; CSA C22.2 No. 18
• Standards / Compliance: ARRA Compliant; Buy American Act Compliant; RoHS Compliant; Federal Specification A-A-50563
• Net Weight: 0.0624 lbs
• Gross Weight: 0.15 lbs
• Country of Origin: United States
• UPC: 00783126060409
• GTIN: 00783126060409
• UNSPSC: 39131708
