Appleton BR7550 Bell Reducer 3/4-1/2 Mall Iron

Product Description

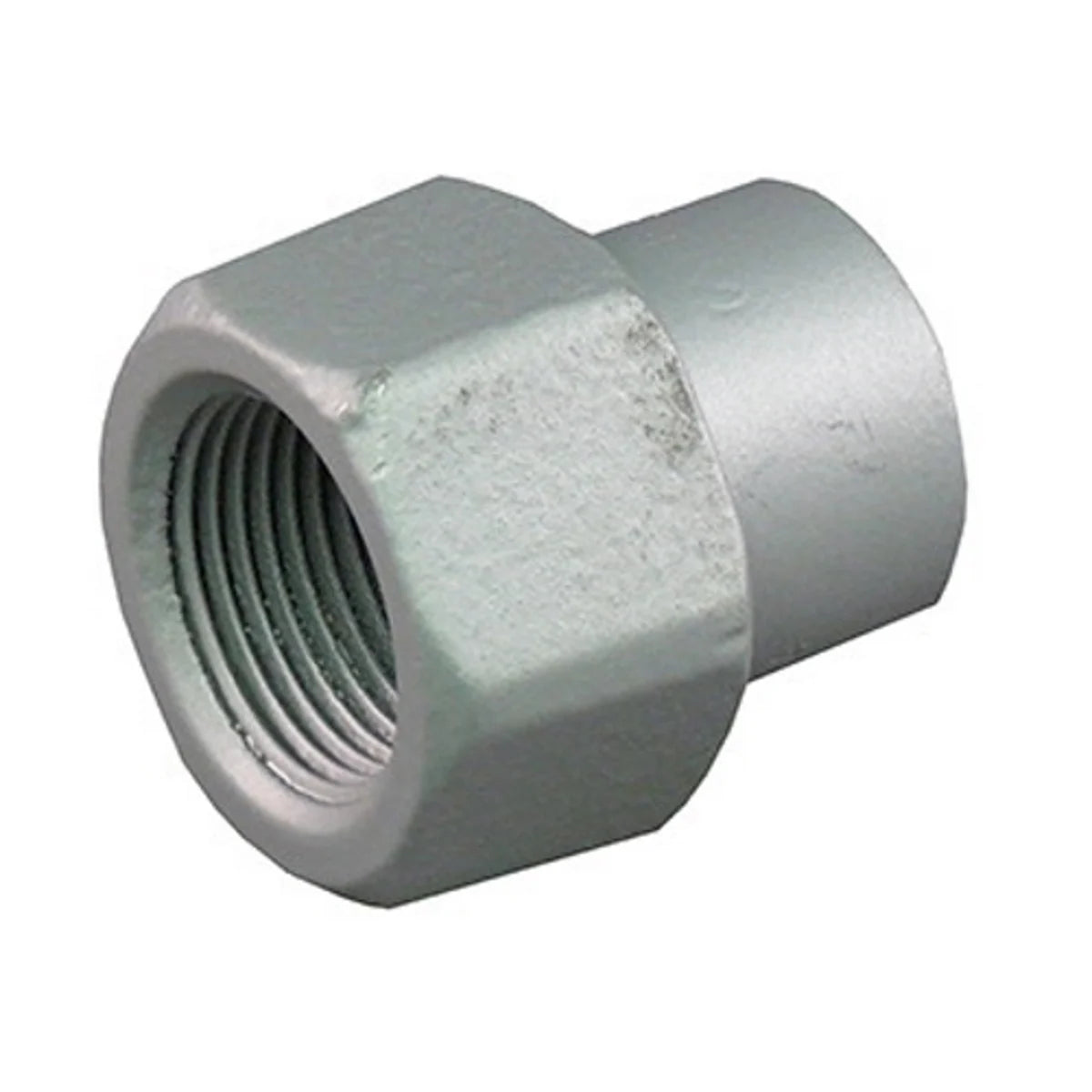

The Appleton BR7550 is a bell reducer coupling designed for use with threaded rigid metal conduit and intermediate metal conduit (IMC). This product features a large hub measuring three-quarters of an inch and a small hub measuring one-half inch. It is constructed from malleable iron, ensuring strength and durability. The coupling has female threaded connections and is ideal for applications requiring a reliable and rigid connection.

• Trade Size: Large Hub 3/4 Inch, Small Hub 1/2 Inch
• Material: Malleable Iron
• Standard: UL 886, CSA C22.2, Explosionproof and Dust-Ignitionproof

Product Highlights

This coupling provides a smooth rounded integral bushing in each hub that protects conductor insulation. It features accurately tapped tapered threads for secure connections.

Product Information

Standard Information

• Catalog Number: BR7550
• Manufacturer: Appleton Electric

Technical Specifications

• Material: Malleable Iron
• Trade Size: Large Hub: 3/4 Inch, Small Hub: 1/2 Inch
• Finish: Triple-Coat (Zinc Electroplate, Chromate and Epoxy Powder Coat)
• Connection: Female Threaded
• Application: For Use With Threaded Rigid Metal Conduit and IMC
• Weight: 0.350 Pounds
• Height: 0.220 Inches
• Width: 5.200 Inches
• Length: 5.200 Inches
• UPC: 781381758291
