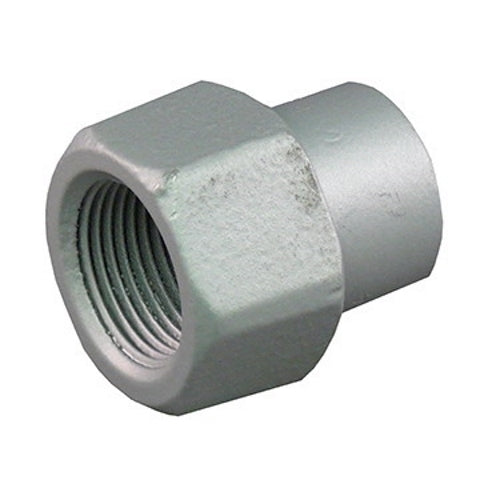

Appleton BR20075 Bell Reducer 2X3/4

Product Description

Appleton BR20075 is a Bell Reducer coupling designed for reliable connections between threaded rigid metal conduits and intermediate metal conduits. This coupling features a large hub with a diameter of two inches and a small hub with a diameter of three-fourths inches.

• Material: Malleable iron for durability.
• Connection type: Female threaded for secure fittings.
• Uses: Suitable for hazardous locations under Class I and II guidelines.

Product Highlights

This coupling is explosionproof and dust-ignitionproof, making it ideal for various industrial applications.

Product Information

Standard Information

• Manufacturer: Appleton Electric
• UPC: 781381758369

Technical Specifications

• Catalog Number: BR20075
• Trade Size: Large Hub: 2 IN, Small Hub: 3/4 IN
• Material: Malleable Iron
• Application: For use with threaded rigid metal conduit and IMC
• Special Features: Explosionproof, dust-ignitionproof; smooth rounded integral bushing protects conductor insulation
• Standard: UL 886, UL File Number E10444
• Length: 5.8 inches
• Width: 5.6 inches
• Height: 1.22 inches
• Weight: 1.28 pounds
