Appleton BLB300-M 3 Mogul Unilet Type L

Product Description

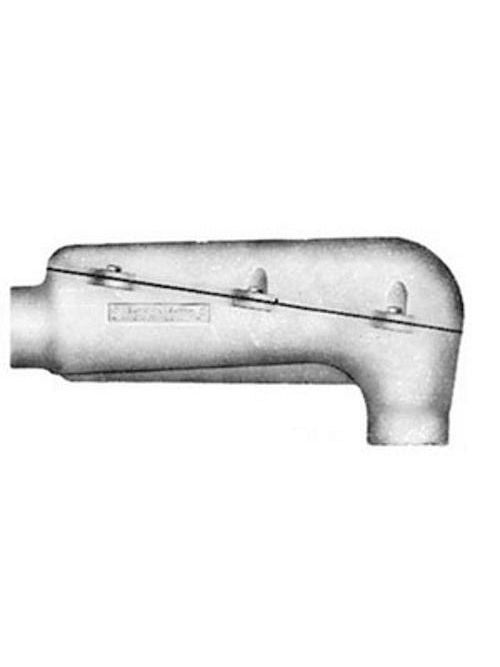

The Appleton BLB300-M is a mogul UNILETS Type LB conduit outlet body designed for use with rigid metal conduit and intermediate metal conduit (IMC). It features a hub size of three inches and is made of malleable iron with a triple-coat finish that includes zinc electroplate, chromate, and epoxy powder. This product is ideal for electrical installations where reliability and durability are crucial.

• Hub Size: 3 inches
• Length: 21.06 inches, Width: 5.88 inches, Height: 10 inches
• Material: Malleable Iron with Triple-Coat Finish

Product Highlights

The conduit outlet body includes an assembled cover and gasket, ensuring a tight seal. It is built with exclusive features such as built-in rollers to facilitate cable pulling and a tapered female threaded connection for easy installation.

Product Information

Standard Information

• Catalog Number: BLB300-M
• Manufacturer: Appleton Electric

Technical Specifications

• Material: Malleable Iron
• Hub Size: 3 inches
• Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
• Length: 21.06 inches
• Width: 5.88 inches
• Height: 10 inches
• Connection Type: Tapered Female Threaded
• Applications: For use with Rigid Metal Conduit and IMC
• Country of Origin: Mexico
