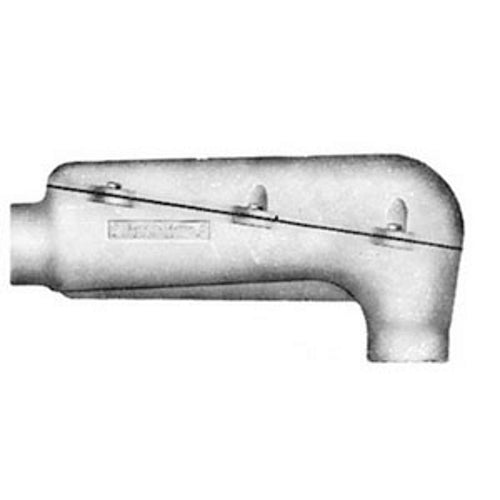

Appleton BLB250-A Mogul Unilet Type LB 2-1/2 inches

Product Description

The APPLETON BLB250-A Mogul Unilet Type LB is designed to connect and change the direction of conduit runs. It allows connections for branch runs and serves as a pulling fitting, permitting access to conductors for splicing and maintenance. The body facilitates pulling large and heavy conductors and has raised cast covers that provide additional wiring area.

• Used to connect and change direction of conduit runs
• Allow connections for branch runs
• Serve as pulling fittings
• Permit access to conductors for splicing and maintenance

Product Highlights

Connect and change direction of conduit runs with the Appleton Mogul Unilet. It facilitates easy access to conductors for maintenance.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: BLB250-A
• Country of Origin: MX

Technical Specifications

• Type: Type LB
• Material: Aluminum
• Hub Diameter: 2 1/2 in
• Finish: Epoxy Powder Coated
• UNSPSC: 39131708
• Used On: IMC/Rigid Conduit
• Approval: UL 514B, CSA C22.2, NEC
• Hub Size: 2-1/2 in
• Form Type: Mogul
• Application: Rigid Metal and IMC Conduit Applications
• Hub Location: 90 Degree
• Installation: Threaded
• Access Opening: Back
• Number of Hubs: 2
• Connection Type: Tapered FNPT
• Enclosure: NEMA FB-1
• Style: LB
• Series: NEC 6x
• Capacity: 210 cu-in
• Cover Type: Epoxy Powder Coated Copper-Free Aluminum
• Connection: Tapered Female Threaded
• Country of Origin: MX
• Brand: Appleton
