Product Description

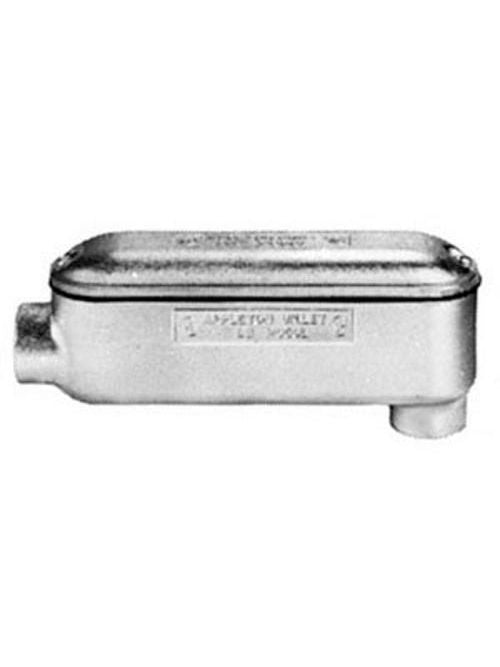

The Appleton BLB200-M is a Type LB conduit body designed for use with rigid metal conduit and IMC conduit. It features a hub size of two inches and a length of fourteen point six three inches, with a width of three point one three inches and a height of six point three one inches. Made from malleable iron, this conduit body is coated with a triple-coat finish, which includes zinc electroplate, chromate, and epoxy powder.
- Hub size: 2 IN
- Material: Malleable iron
- Length: 14.63 inches
Product Highlights
Designed to facilitate easy cable pulling and secure connections, this conduit body includes an assembled cover and gasket for robustness.
Product Information
Standard Information
-
Brand: Appleton
-
Catalog Number: BLB200-M
Technical Specifications
-
Finish: Triple-Coat (Zinc Electroplate, Chromate, and Epoxy Powder Coat)
-
Hub Size: 2 inches
-
Material: Malleable Iron
-
Length: 14.63 inches
-
Width: 3.13 inches
-
Height: 6.31 inches
-
Applications: Designed for use with rigid metal conduit and IMC, suitable for pulling large and heavy conductors.
-
Connection Type: Tapered female threaded
