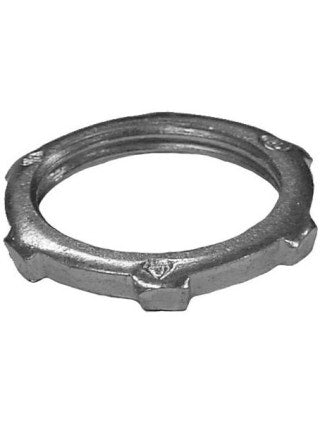

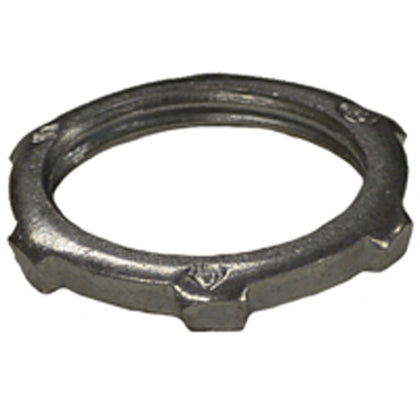

Appleton BL-400 Locknut 4 Inch

Product Description

The APPLETON BL-400 is a conduit locknut with a trade size of 4 inches, a diameter of 5.44 inches, and a thickness of 0.38 inches. Constructed of steel, it features threaded installation and is approved to UL 514B and CSA C22.2 standards. It conforms to NEMA FB-1 standards and is used to secure an ordinary nut from working loose.

• Locknuts are Used to Secure a Fitting into an Enclosure to Prevent the Fitting from Working Itself Loose Due to Vibration or Motion

Product Highlights

The APPLETON BL-400 locknut is ideal for use with rigid/IMC conduit.

Product Information

Standard Information

• Brand: APPLETON
• Manufacturer Part Number: BL-400

Technical Specifications

• Manufacturer: Emerson Electric Co. (Appleton)
• UPC: 781381158350
• UNSPSC: 31161716
• Commodity Code: Steel Rigid Conduit Fittings
• Installation: Threaded
• Approval: UL 514B, CSA C22.2
• Trade Size: 4 Inch
• Material: Steel
• Additional Info: Applicable Standard NEMA FB-1; Application Used to Secure an Ordinary Nut from Working Loose by Locking Itself when Screwed Down Tight
• Part Number: BL400
• Item Package Quantity: 1
• Measurement System: Inch
• Included Components: BL400
• Batteries Required?: No
• Diameter: 4 in
